Condensate Pot

Condensate Pots

What are Condensate Pot?

Condensate Pot is designed to drain out foreign or residue material from the pipeline thereby guarding critical components of instrumentation system. Generally Steam is passed through Condensation Pot. The condensate residue is drained from the bottom valve connection .Installation can be either vertical or horizontal lines depending on the system requirement. Also condensate pot is used before the pressure transmitters line because temperature of steam is very high so this high temp. Steam directly may damage diaphragm of the pressure transmitter.

They are also known as Seal Pots or Condensing Pot.

Support for Selection?

We provide complete drawing and technical support for all our customers. We give various recommendations on selection of  Pipe Schedule , number of ports and plugging, length of the Condensate Pot, choice of materials ,high temperature support …etc

Strong Focus on Certification

All our Condensate Pot come complete with Hydro Pressure Test .We can also provide you following certifications on request like Material Test Certificate by Spectro Analysis or PMI ,Heat Code Traceability Report ,Dye Penetration Test – Non Destruction Testing , Radiography Testing

Condensate Pot Type A

Condensate Pot for Steam Flow Measurement

Condensate Pot Type A

Condensate Pot SS 316

Condensate Pot Type B

Condensate Pot for Prestige Transmitter

Condensate Pot Type B

Condensate Pot Installation

Condensate Pot Type C

Condensate Pot Manufacturer

Condensate Pot Type C

Condensate Pot Chambers

Condensate Pot Type D

How to Install Condensate Pot

Condensate Pot Type D

Condensate Pot for Prestige Transmitter

Condensate Pot Type E

Condensate Pot Installation

Condensate Pot Type E

How to Install Condensate Pot

Condensate Pot Type F

Condensate Pot Chambers

Condensation Pot Type F

Condensate Pot Manufacturer

Specification for Ordering Standard Condensate Pot

Select Condensate Pot Design from above add part number below . Example to order Type A port in 1st Specification add FCP150-4N-A



PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm B mm T mm
FCP150-4N 1/4” 1800 150 135 50.8 2.5
FCP300-4N 1/4” 1800 300 225 50.8 2.5
FCP400-4N 1/4” 1800 400 290 50.8 2.5
FCP500-4N 1/4” 1800 500 350 50.8 2.5
FCP1000-4N 1/4” 1800 1000 275 88.9 4.6
FCP2250-4N 1/4” 1800 2250 435 120 5.2
FCP3785-4N 1/4” 1800 3785 680 120 5.2
FCP1000-8N 1/2” 1800 1000 275 88.9 4.6
FCP2250-8N 1/2” 1800 2250 435 102 5.2
FCP3785-8N 1/2” 1800 3785 680 102 5.2
FCP1000-12N 3/4” 1800 1000 275 88.9 4.6
FCP2250-12N 3/4” 1800 2250 435 102 5.2
FCP3785-12N 3/4” 1800 3785 680 102 5.2

Specification for Ordering Custom Make Condensate Pot

Criteria for Selection as below . If you have drawing send us that too .

Pipe size 2",3",4",5”,6”  and larger size upon request.

Pipe Schedule 40, 80, 160, XX seamless pipe.

Number of Ports 2 ports upto 8 ports , refer to the section above for arrangements

Total Length Pipe length 8",10",12" and larger length upon request.

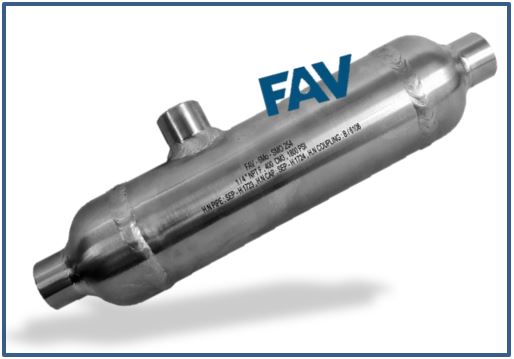

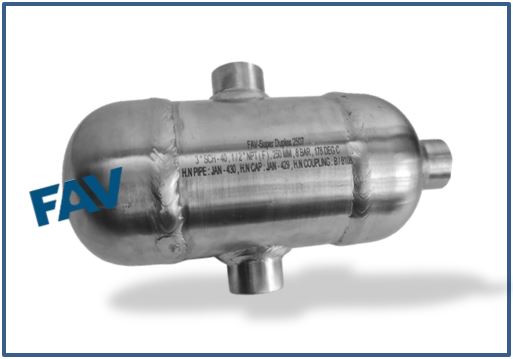

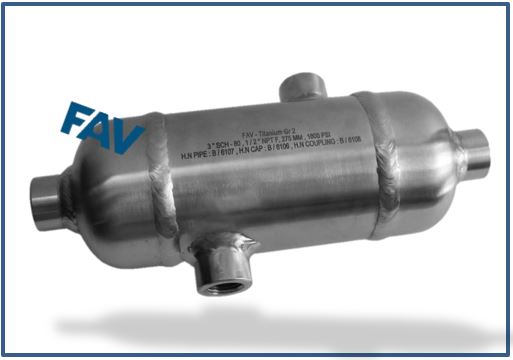

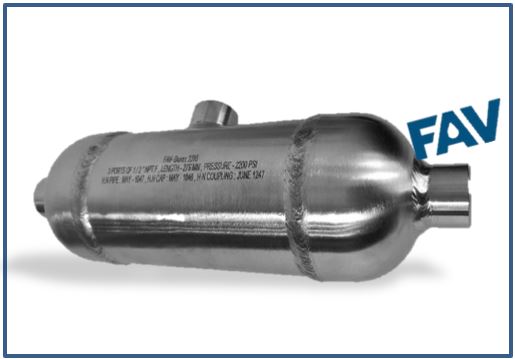

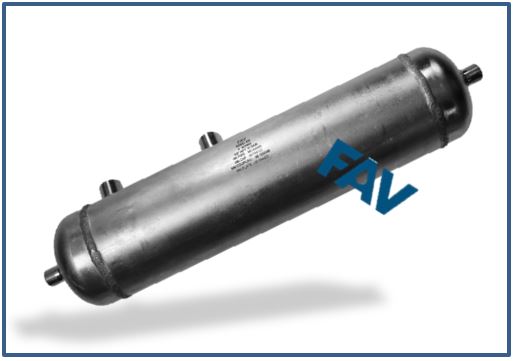

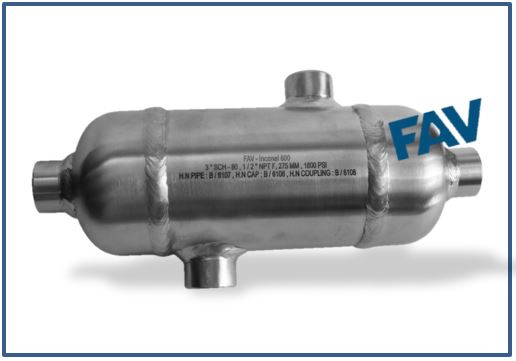

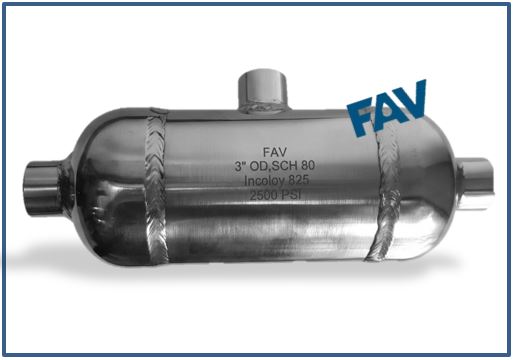

Material of construction Carbon Steel ASTM A106 ,Carbon Steel  ASTM A105, Stainless Steel 316, Stainless Steel 304 Alloy Steel ASTM A335 P11 ,Alloy Steel  ASTM A335 P22 ,P91 , Monel 400, Hastelloy C 276 refer to the section below for visuals

Thread Connections NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11,    Butt weld as per ANSI B16.9

We also have Titanium Fittings & Titanium Ferrule Compression Fittings

Condensate Pots,Zinc Plating

Alloy Steel Condensate Pots

Condensate Pots, High Pressure Paints,Blue

Alloy Condensate Pot

Condensate Pots,Red Oxide Coated

Steel Condensate Pots

Condensate Pots, Galvanized Plating

Carbon Steel Condensate Pots

Condensate Pots, High Pressure Paints,Red

A106 Gr. B Condensate Pots

Condensate Pots,PTFE Coating

P22 Condensate Pots

Condensate Pot

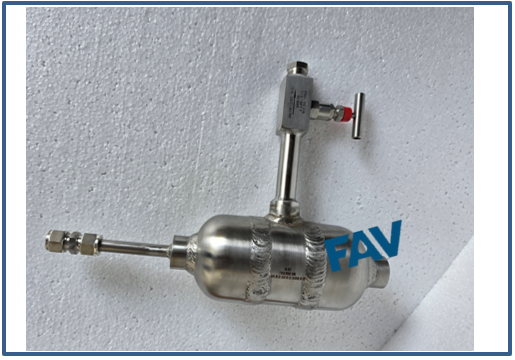

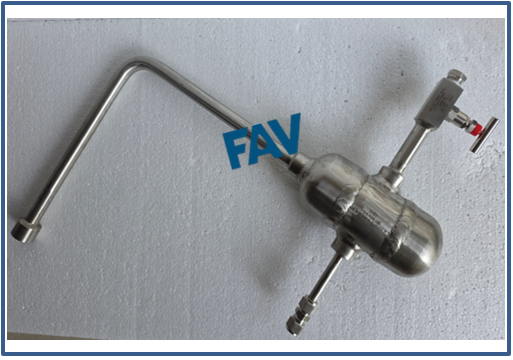

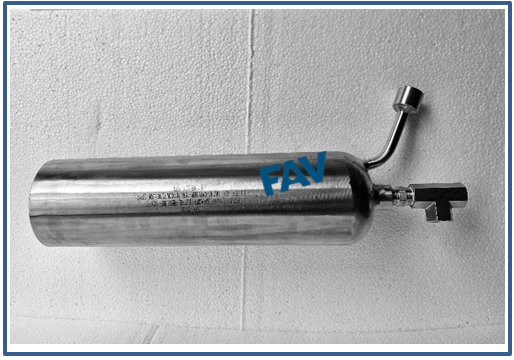

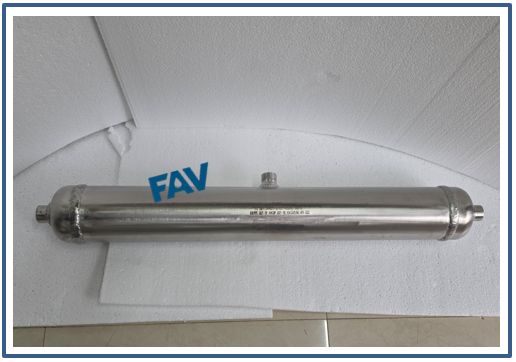

Beside regular Condensate Pot, we also make custom made Condensate Pots. We can customize for you the length, diameter, special connection, additional accessories, mounting option. Please see below some photos.

Custom Made Condensate Pot

Condensate Pots

Custom Made Condensate Pots 1

Condensate Pots Non Standard

Custom Made Condensate Pots 2

Custom Condensate Pots

Custom Made Condensate Pots 3

Condensate Pots Non Standard

Custom Made Condensate Pot 4

Condensate Pots

Custom Made Condensate Pot 5

Condensate Pot
Condensate Pots Manufacturer
Condensate Pot exporter
Condensate Pot Design Installation
Condensate Pot exporter India
