Stainless Steel Braided Corrugated Hose Assemblies

FAV is one of the most reputed Stainless Steel Braided Corrugated Hose Assemblies Manufacturer.  Assemblies are engineered to perfection in flexibility, strength and reliability. We can provide a corrugated stainless steel hose assembly that meet your most demanding technical specification. We can supply the hose complete with any all types of end connections in various types of materials. The end connection are TIG welded to hose.

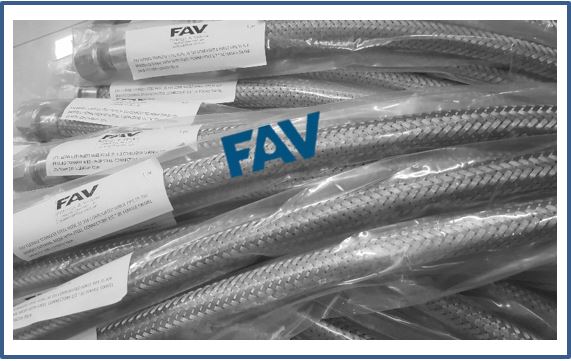

Stainless Steel Flexible Hose

Braiding Characteristics

One and Two layers of braiding are available standards . The braiding is highly flexible & follows the movement of the hose. The braid is normally manufactured in S.S. 304 , S.S. 316 & S.S. 321 wire. SS flexible Hose Specification can be of wide range .

SS Braided Hose

Degree of Customisation



Our SS Braided Hose Assemblies can be 100% customised . You can choose between Flanged and Threaded connections . We also undertake manufacturing as per drawing . The Fittings can also be custom made as per the choice of application .



SS Braided Hose assemblies

Stainless Steel Hoses over SS tubes ?



The Stainless Steel Hoses are  chosen over Stainless Steel Tubes due to its flexible nature . Assemblies in various industries require medium connection in a cris-cross way and hence SS Braided Hoses are widely accepted and used . Maybe the only disadvantage of SS Hoses is its limitation in High Pressure above 4000 psi

Stainless Steel Corrugated Hose with Flange Connection

Stainless Steel Corrugated Hose with Flange Connection

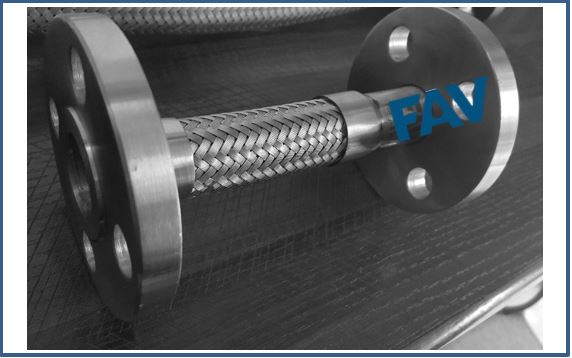

SS Braided Hose with Flange Connections

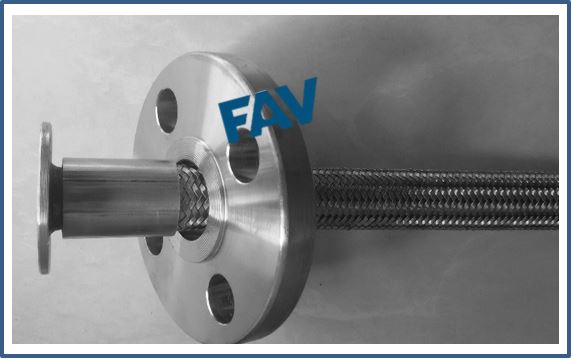

Flange Connections are in most cases Loose Flanges or Swivel Flange.Some cases we have fixed Flange

British Standard : Table D, E, F, H,    Pressure Rated Flanges : PN10 PN16, PN25,

ANSI / ASME Standard : ANSI B16.5 ASA 150#, ASA 300#, ASA 600#, ASA 900#,ASA 1500#

 JIS Flange Standard : 5k, 10k

Types - Threaded Flanges, Butt Weld Flanges, Custom Made Flanges, Slip On, Welded ,RF & Others available

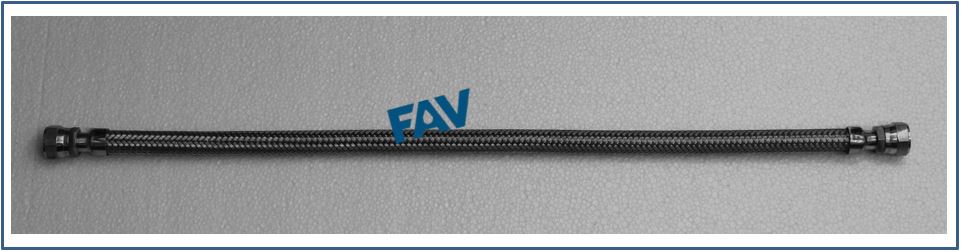

SS Braided Hose with Threaded and Weld Connections

We have widest possible range of end connections .Some of the configurations we can give you are as below .

  • BSP Female Fixed Connection
  • BSP Female Swivel Connection

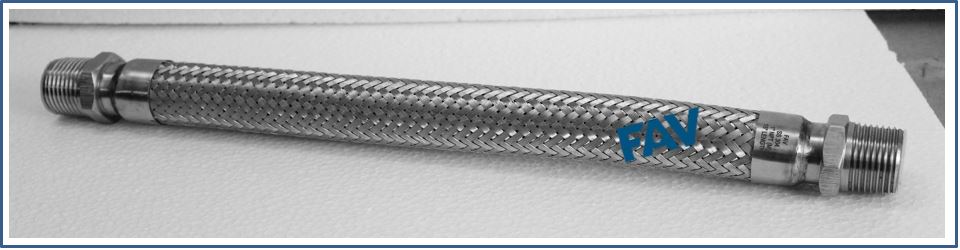

  • BSP Male Connection
  • BSPT Female Fixed Connection
  • BSPT Female Swivel Connection
  • BSPT Male Connection
  • Double Ferrule Tube OD Connection
  • Elbow Swivel Connection
  • JIC Female Swivel Connection
  • JIC Male Connection
  • NPT Female Fixed Connection
  • NPT Female Swivel Connection
  • NPT Male Connection
  • SAE Male Connection
  • Union Coupling Connection
  • Welding Pipe Plain End Connection
  • Welding Pipe Stub Connection

TECHNICAL DATA OF SS FLEXIBLE HOSES

TECHNICAL DATA OF SS FLEXIBLE HOSES
  Nominal Bore Minimum Bend Radius Double Braid
  N. B. (mm) Static (mm) Flexing (mm) Max. Pressure Kg/cm2 Test Pressure Kg/cm2
FAVSSBH1 6 25 100 160 240
FAVSSBH2 10 40 150 144 216
FAVSSBH3 12 50 200 128 192
FAVSSBH4 16 50 200 112 168
FAVSSBH5 20 70 200 102 153
FAVSSBH6 25 90 200 80 120
FAVSSBH7 32 110 250 64 96
FAVSSBH8 40 130 250 48 92
FAVSSBH9 50 175 350 44 66
FAVSSBH10 65 200 410 38 57
FAVSSBH11 80 205 450 28 42
FAVSSBH12 100 230 560 26 39
FAVSSBH13 125 280 660 20 30
FAVSSBH14 150 320 816 16 24
FAVSSBH15 200 435 1015 12 18
