Compression Tube Fittings

Double Ferrule Fittings

How it Works ?

Double Ferrule Fittings work on the proven principle of ferrules swaging to the tube when tightened with a spanner. When the nut is tightened the ferrule impresses on the tube to make a leak-proof connection . Available in numerous configurations and sizes, our Double Ferrule Compression Fittings are made up of four parts consisting of a body, front ferrule, back ferrule, and nut.On the same principle we also make wide range of Instrument Valves

Why Double Ferrule is a success and why should you use it  ?

  1. Elimates the need to use welding when Connecting fittings to Pipes.
  2. Can be re-used multiple times by just replacing Ferrules
  3. Just require a Spanner and Installation know-how .No special equipments needed.
  4. Globally accepted by major users .

Raw Material

Stainless Steel 316, Stainless Steel 304 , Monel, ,Hstelloy,Inconel 625 and 825 ,Incoloy 600,Titatnium Grade 2 ,Super Duplex & other exotic material. We have dedicated section on Exotic Raw Materials for Our Fittings.

Straight Union

Straight Union Double Ferrule Compression Tube

Reducing Union

Reducing Union

Tee Union

Tee Union

Elbow Union

Elbow Union

45 degree Elbow Union

45 degree Elbow Union

45 deg Elbow Connector

45 degree Elbow

Cross Union

Union Cross

Male Connector NPT

Male Connector NPT

Male Connector Port

Connector Port

Male Connector Metric

Male Connector Metric

Male Connector BSP

Male Connector BSP double Compression tube Fitting

Male Connector BSPT

Male Connector BSPT

Male Connector BW

Male Connector Buttweld BW

Male Connector SW

Male Connector Socketweld SW

Male Connector JIC

Male Connector JIC

Female Connector

Female Connector

Female Elbow

Elbow

Male Elbow

Male Elbow

Male Branch Tee

Male Branch Tee

Male Run Tee

Male Run Tee Double Ferrule Compression Tube Fittings

Female Branch Tee

Female Branch Tee

Female Run Tee

Female Run Tee

Male Bulkhead Connector Double Ferrule

Male Bulkhead Connector

Female Bulkhead Connector

Female Bulkhead Connector

Bulkhead Union Double Ferrule

Bulkhead Union

Nut

Nut

Double Ferrule

Double Ferrule

Port Connector

Port Connector

Cap

Cap

Tube Plug

Tube Plug Ferrule

Female Adaptor

Adaptor

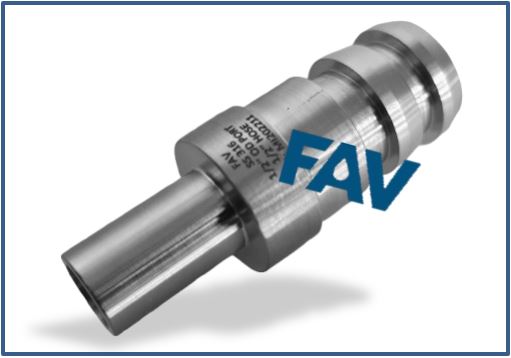

Port Tube Adapter

Port Adapter
