Standards: ASME/ANSI B31.3 - B16.5
Steels: Carbon to ASTM A105 -ASTM A516. gr.70
ASTM A350 LF1/LF2/LF3
Stainless to ASTM A182 F304/304L/316/316L
ASTM A479 type 304/304L/316/316L
Surfaces : Flat (FF)
Gasket surface finish: 125/250 AARH - Smooth finish
| DN | 150LB | 300LB | 600LB | 900LB | 1500LB | 2500LB | ||||||||||||||||||
| Size | a | b | s | kg | a | b | s | kg | a | b | s | kg | a | b | s | kg | a | b | s | kg | a | b | s | kg |
| 1/2" | 44.5 | 15.8 | 38.1 | 0.4 | 51 | 15.8 | 38.1 | 0.5 | 51 | 15.8 | 38.1 | 0.5 | - | - | - | - | 60.5 | 15.8 | 38.1 | 0.8 | 66.5 | 15.8 | 38.1 | 0.9 |
| 3/4" | 54 | 21 | 38.1 | 0.5 | 63.5 | 21 | 38.1 | 0.8 | 63.5 | 21 | 38.1 | 0.8 | - | - | - | - | 66.5 | 21 | 38.1 | 0.9 | 73 | 21 | 38.1 | 1.1 |
| 1" | 63.5 | 26.6 | 38.1 | 0.7 | 70 | 26.6 | 38.1 | 0.9 | 70 | 26.6 | 38.1 | 0.9 | - | - | - | - | 76 | 26.6 | 38.1 | 1.1 | 82.5 | 26.6 | 38.1 | 1.4 |
| 1-1/2" | 82.5 | 40.9 | 38.1 | 1.2 | 92 | 40.9 | 38.1 | 1.6 | 92 | 40.9 | 38.1 | 1.6 | - | - | - | - | 95 | 40.9 | 38.1 | 1.7 | 114.5 | 40.9 | 38.1 | 2.6 |
| 2 | 101.5 | 54.8 | 38.1 | 1.7 | 108 | 54.8 | 38.1 | 2 | 108 | 54.8 | 38.1 | 2 | - | - | - | - | 139.5 | 54.8 | 38.1 | 3.8 | 143 | 54.8 | 38.1 | 4 |
| 2-1/2" | 120.7 | 63.5 | 38.1 | 2 | 127 | 63.5 | 38.1 | 2.5 | 127 | 63.5 | 38.1 | 2.5 | - | - | - | - | 161.9 | 63.5 | 38.1 | 4.3 | - | - | - | - |
| 3" | 133.5 | 82.8 | 38.1 | 2.5 | 146 | 82.8 | 38.1 | 3.4 | 146 | 82.8 | 38.1 | 3.4 | 165 | 82.8 | 38.1 | 5.4 | 171.5 | 82.8 | 38.1 | 5.2 | 193.5 | 82.8 | 38.1 | 7.2 |
| 4" | 171.5 | 108.2 | 38.1 | 4.1 | 178 | 108.2 | 38.1 | 4.6 | 190.5 | 108.2 | 38.1 | 5.7 | 203 | 108.2 | 38.1 | 6.5 | 206.5 | 108.2 | 38.1 | 7.2 | 232 | 108.2 | 38.1 | 9.8 |
| 6" | 219.1 | 161.5 | 38.1 | 5.1 | 247.5 | 161.5 | 38.1 | 8.2 | 263.5 | 161.5 | 38.1 | 10.1 | 285.5 | 161.5 | 38.1 | 10 | 279.5 | 161.5 | 38.1 | 12.2 | 314.5 | 161.5 | 38.1 | 17 |
| 8" | 274.5 | 211.6 | 38.1 | 7.4 | 305 | 211.6 | 38.1 | 11.3 | 317.5 | 211.6 | 38.1 | 13.1 | 355.5 | 211.6 | 38.1 | 15.6 | 349 | 211.6 | 38.1 | 18.1 | 384 | 211.6 | 38.1 | 24 |
| 10" | 336.5 | 264.7 | 38.1 | 10.1 | 359 | 264.7 | 38.1 | 13.7 | 397 | 264.7 | 38.1 | 20 | 432 | 264.7 | 38.1 | 19 | 432 | 264.7 | 38.1 | 27.5 | 473 | 264.7 | 38.1 | 36 |
| 12" | 406.4 | 314.7 | 38.1 | 15.5 | 419 | 314.7 | 38.1 | 18 | 454 | 314.7 | 38.1 | 25 | 495.5 | 314.7 | 38.1 | 24 | 517.5 | 314.7 | 38.1 | 39 | 546 | 314.7 | 38.1 | 46 |
| 14" | 447.5 | 346 | 38.1 | 18.9 | 482.5 | 346 | 38.1 | 26 | 489 | 346 | 38.1 | 28 | 517.5 | 346 | 38.1 | 35 | 574.5 | 346 | 38.1 | 49 | - | - | - | - |
| 16" | 511 | 396.8 | 38.1 | 23 | 536.5 | 396.8 | 38.1 | 30 | 562 | 396.8 | 38.1 | 37 | 571.5 | 396.8 | 38.1 | 41 | 638 | 396.8 | 38.1 | 58 | - | - | - | - |
| 18" | 546 | 447.8 | 38.1 | 24 | 594 | 447.8 | 38.1 | 35 | 609.5 | 447.8 | 38.1 | 40 | 635 | 447.8 | 38.1 | 57 | 701.5 | 447.8 | 38.1 | 68 | - | - | - | - |
| 20" | 603 | 469.9 | 38.1 | 33 | 651 | 469.9 | 38.1 | 47 | 679.5 | 469.9 | 38.1 | 56 | 695.5 | 469.9 | 38.1 | 74 | 752.5 | 469.9 | 38.1 | 81 | - | - | - | - |
| 22" | 675.5 | 547.7 | 38.1 | 31 | 701.5 | 547.7 | 38.1 | 45 | 730.5 | 547.7 | 38.1 | 45 | - | - | - | - | - | - | - | - | - | - | - | - |
| 24" | 714.5 | 596.9 | 38.1 | 36 | 771.5 | 596.9 | 38.1 | 56 | 787.5 | 596.9 | 38.1 | 61 | 835 | 596.9 | 38.1 | 98 | 898.5 | 596.9 | 38.1 | 105 | - | - | - | - |

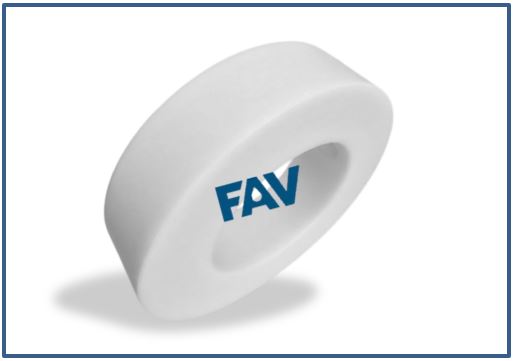

Bleed Rings: Efficient Pressure Relief Solutions
Overview
Relieve excess pressure, drain fluids, and attach instruments with our bleed rings.
Key Features and Benefits

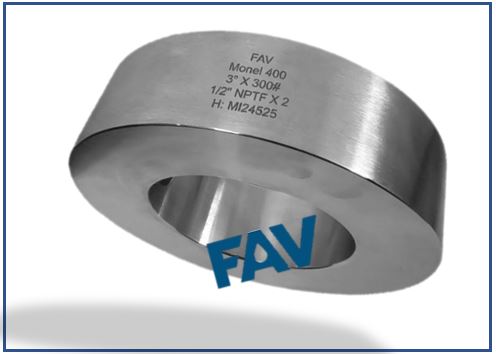

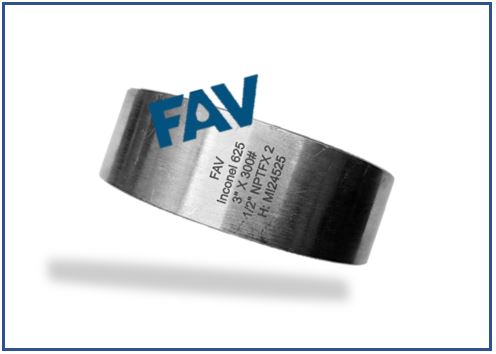

- Materials: Stainless steel, carbon steel, Inconel
- Design: Forged metal, standard flange fit, 1/2-inch or 3/4-inch tapping
- Applications: Pressure relief, fluid drainage, instrument attachment
- Installation: Easy, economical, preferred over DIN flanges
Machining Expertise
Specialized machining for high-performance bleed rings.
Why Choose Our Bleed Rings?
- Proven performance
- Corrosion resistance
- Industry compliance
- Customization options
Industries We Serve
- Oil and gas
- Chemical processing
- Power generation
- Other industries requiring high-performance bleed rings
For more click here
Alloy 600 Bleed Ring
Super Duplex 2507 Bleed Ring
SS 316L Bleed Ring
Inconel 800 Bleed Ring
Duplex 2205 Bleed Ring
SS 316 Bleed Ring
Hastelloy C276 Bleed Ring
Titanium Gr 2 Bleed Ring
Frequently Asked Questions (FAQs)
Q: What materials are available for bleed rings?
A: Our bleed rings are available in stainless steel, carbon steel, and special alloys like Inconel.
Q: What sizes are available?
A: Standard sizes include 1/2-inch and 3/4-inch tapping, but custom sizes are available upon request.
Q: What industries use bleed rings?
A: Bleed rings are commonly used in oil and gas, chemical processing, power generation, and other industries requiring high-performance pressure relief solutions.
Q: Are bleed rings easy to install?
A: Yes, our bleed rings are designed for easy installation and are preferred over DIN flanges due to their economical and efficient design.
Q: Can bleed rings withstand high temperatures?
A: Yes, our bleed rings are made from materials resistant to corrosion and extreme temperatures.
Q: Do you offer customization options?
A: Yes, we provide customization options to meet specific industry requirements.
Q: What is the typical lead time for delivery?
A: Lead times vary depending on the order quantity and complexity, but we strive to deliver within 14 days.
