FAV range of Sampling Cylinders is designed to provide safe containment for storage, examination and transportation of both liquids and gases. We have ability to customize Sampling Cylinders  to suit your exact needs . The range is designed for and used across the world in various industries, including petrochemical refineries and well sites, analytic laboratories, alternative fuel technologies, and manufacturing.

FAV Sampling Cylinder is available in Stainless Steel 304, Stainless Steel 316, Carbon Steel, Monel,Hastelloy,Inconel.

Sampling Cylinder
Standard Pressure Sampling Cylinder
SS Sampling Cylinder
Sampling Cylinder,Drawing, 1800 psi

Datasheet of Sampling Cylinder 1800 psi

PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSC150-4N2 1/4” 1800 150 135 50.8
FSC300-4N2 1/4” 1800 300 225 50.8
FSC400-4N2 1/4” 1800 400 290 50.8
FSC500-4N2 1/4” 1800 500 350 50.8
FSC1000-4N2 1/4” 1800 1000 275 88.9
FSC2250-4N2 1/4” 1800 2250 435 120
FSC3785-4N2 1/4” 1800 3785 680 120
FSC1000-8N2 1/2” 1800 1000 275 88.9
FSC2250-8N2 1/2” 1800 2250 435 102
FSC3785-8N2 1/2” 1800 3785 680 102
FSC1000-12N2 3/4” 1800 1000 275 88.9
FSC2250-12N2 3/4” 1800 2250 435 102
FSC3785-12N2 3/4” 1800 3785 680 102
Stainless Steel Sampling Cylinder
Medium Pressure Sampling Cylinder
Sampling Cylinder 5000 psi

Datasheet of Sampling Cylinder 5000 psi

PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSC150-4N5 1/4” 5000 150 135 50.8
FSC300-4N5 1/4” 5000 300 225 50.8
FSC400-4N5 1/4” 5000 400 290 50.8
FSC500-4N5 1/4” 5000 500 350 50.8
FSC1000-4N5 1/4” 5000 1000 275 88.9
FSC2250-4N5 1/4” 5000 2250 435 120
FSC3785-4N5 1/4” 5000 3785 680 120
FSC1000-8N5 1/2” 5000 1000 275 88.9
FSC2250-8N5 1/2” 5000 2250 435 102
FSC3785-8N5 1/2” 5000 3785 680 102
FSC1000-12N5 3/4” 5000 1000 275 88.9
FSC2250-12N5 3/4” 5000 2250 435 102
FSC3785-12N5 3/4” 5000 3785 680 102

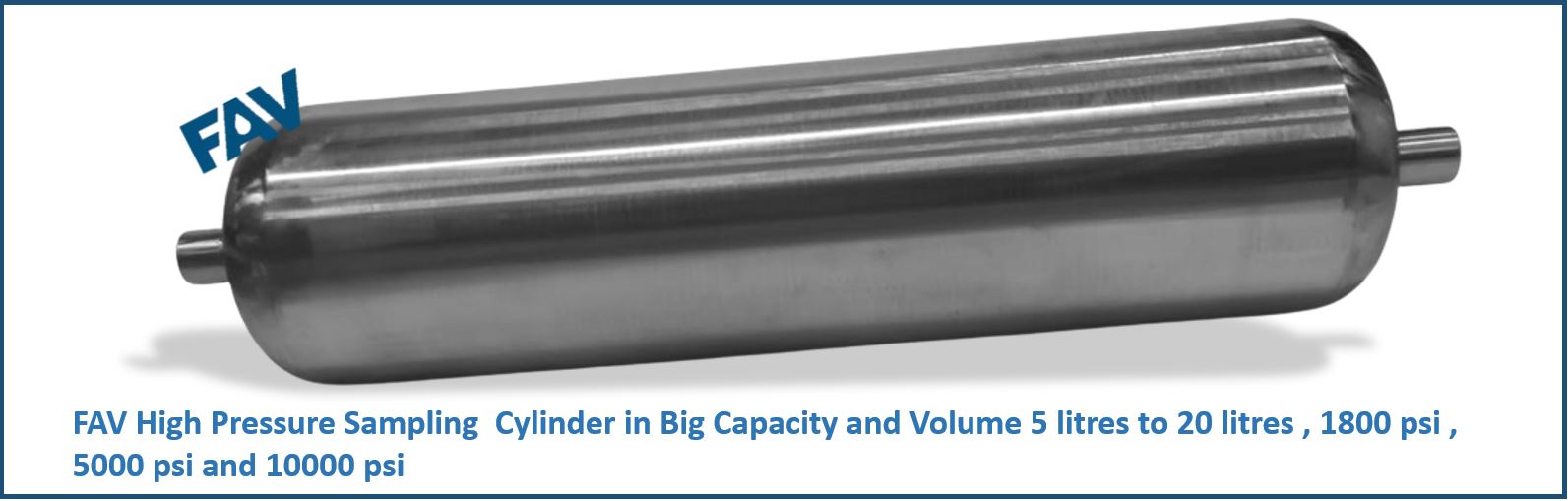

High Pressure Sampling Cylinder
High Pressure Sampling Cylinder ,10000 psi
High Pressure Cylinders
Sampling Cylinder,Drawing, 10000 psi

Datasheet of Sampling Cylinder 10000 psi

PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSC150-4N10 1/4” 10000 150 135 50.8
FSC300-4N10 1/4” 10000 300 225 50.8
FSC400-4N10 1/4” 10000 400 290 50.8
FSC500-4N10 1/4” 10000 500 350 50.8
FSC1000-4N10 1/4” 10000 1000 275 88.9
FSC2250-4N10 1/4” 10000 2250 435 120
FSC3785-4N10 1/4” 10000 3785 680 120
FSC1000-8N10 1/2” 10000 1000 275 88.9
FSC2250-8N10 1/2” 10000 2250 435 102
FSC3785-8N10 1/2” 10000 3785 680 102
FSC1000-12N10 3/4” 10000 1000 275 88.9
FSC2250-12N10 3/4” 10000 2250 435 102
FSC3785-12N10 3/4” 10000 3785 680 102
Single Ended Sampling Cylinders

Sampling Cylinder in exotic materials

Sampling Cylinder

Typical Arrangment -1

Consists of Sampling Cylinder with two Needle Valves .One at Inlet and One at Outlet . Supporting Pipe Nipple is added. We can give final connection Male by using Male X Female  Needle Valve  . Angle Needle Valve also available.

Consists of Sampling Cylinder with two Needle Valves .One at Inlet and One at Outlet . Supporting Pipe Nipple is added. We can give final connection Male by using Male X Female  Needle Valve  . Angle Needle Valve also available.

Sampling Cylinders  Needle Valve

Typical Arrangment-3

Consists of Sampling Cylinder with QRC,Nipples and Hose .Use full when used as storage/transportation unit with frequent connection and disconnectionSampling Cylinder with Hose QRC

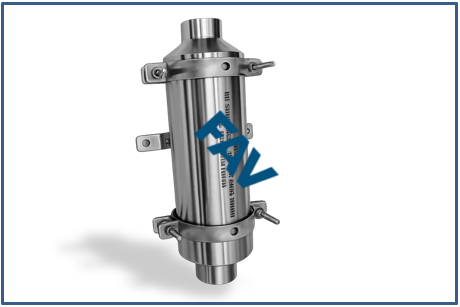

Accessories to go with Sampling Cylinders

Since customization is the key we give Sampling Cylinders complete with  Needle Valves ,Pipe Fittings, SS Braided Hoses and QRC .Send us your requirement now!
