One End Connection Cylinders

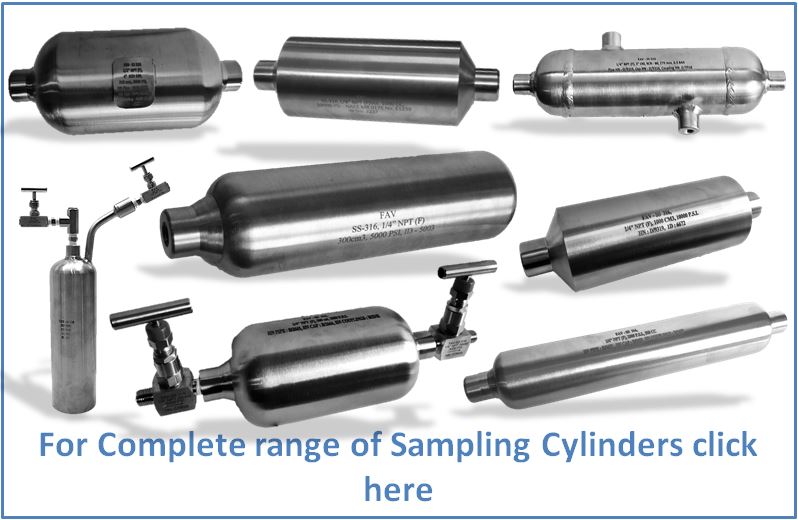

Sampling Cylinder Single Ended

FAV range of Sampling Cylinder Single Ended has a connection only on one side of the cylinder. It is proposed to provide safe containment for storage, examination and transportation of both liquids and gases. We have skill to customize Sampling Cylinders to outfit your exact needs. The range is considered for and used across the world in various industries, counting petrochemical refineries and well sites, analytic laboratories, alternative fuel technologies, and manufacturing.

Single End Cylinders
Single-Ended Sampling Cylinders
Single-Ended Sampling Cylinders
PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSCS150-4N2 1/4” 1800 150 135 50.8
FSCS300-4N2 1/4” 1800 300 225 50.8
FSCS400-4N2 1/4” 1800 400 290 50.8
FSCS500-4N2 1/4” 1800 500 350 50.8
FSCS1000-4N2 1/4” 1800 1000 275 88.9
FSCS2250-4N2 1/4” 1800 2250 435 120
FSCS3785-4N2 1/4” 1800 3785 680 120
FSCS1000-8N2 1/2” 1800 1000 275 88.9
FSCS2250-8N2 1/2” 1800 2250 435 102
FSCS3785-8N2 1/2” 1800 3785 680 102
FSCS1000-12N2 3/4” 1800 1000 275 88.9
FSCS2250-12N2 3/4” 1800 2250 435 102
FSCS3785-12N2 3/4” 1800 3785 680 102
One End Connection Cylinders
PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSCS150-4N5 1/4” 5000 150 135 50.8
FSCS300-4N5 1/4” 5000 300 225 50.8
FSCS400-4N5 1/4” 5000 400 290 50.8
FSCS500-4N5 1/4” 5000 500 350 50.8
FSCS1000-4N5 1/4” 5000 1000 275 88.9
FSCS2250-4N5 1/4” 5000 2250 435 120
FSCS3785-4N5 1/4” 5000 3785 680 120
FSCS1000-8N5 1/2” 5000 1000 275 88.9
FSCS2250-8N5 1/2” 5000 2250 435 102
FSCS3785-8N5 1/2” 5000 3785 680 102
FSCS1000-12N5 3/4” 5000 1000 275 88.9
FSCS2250-12N5 3/4” 5000 2250 435 102
FSCS3785-12N5 3/4” 5000 3785 680 102
Single-Ended Sampling Cylinders
PART No. P NPT - F Pressure Rating PSIG Capacity (Internal Vol.)cm 3±5% L mm D mm
FSCS150-4N10 1/4” 10000 150 135 50.8
FSCS300-4N10 1/4” 10000 300 225 50.8
FSCS400-4N10 1/4” 10000 400 290 50.8
FSCS500-4N10 1/4” 10000 500 350 50.8
FSCS1000-4N10 1/4” 10000 1000 275 88.9
FSCS2250-4N10 1/4” 10000 2250 435 120
FSCS3785-4N10 1/4” 10000 3785 680 120
FSCS1000-8N10 1/2” 10000 1000 275 88.9
FSCS2250-8N10 1/2” 10000 2250 435 102
FSCS3785-8N10 1/2” 10000 3785 680 102
FSCS1000-12N10 3/4” 10000 1000 275 88.9
FSCS2250-12N10 3/4” 10000 2250 435 102
FSCS3785-12N10 3/4” 10000 3785 680 102
Single Ended Sampling Cylinders with Flat End for Stand Mounting
One Ended Sampling Cylinders with Flat End for Stand Mounting
One End Sampling Cylinders with Flat End for Stand Mounting
Single End Sampling Cylinders with Flat End for Stand Mounting
