Pressure Relief Valve

Pressure Relief Valves

FAV Safety Valves offer performance, reliability and flexibility of use in one easy to maintain, reliable product design. Our Instrument Safety Relief Valve are available in a variety of materials and end connections. They are highly durable and provide effective performance without any leakage. Safety Relief Valve has come with a wide variety of port sizes, end connections, style, and temperature and pressure tolerance. FAV Pressure Relief  Valves allows you continuous operation at given Set Pressure. We have variety of Material, Sizes and Range of Set Pressure. Contact now!

Pre-Calibrated Design or Range Setting

We give options of Pre-Calibrated Design or Range Setting

In Pre-Calibrated Design the Safety Valves are calibrated as per your required set pressure. Even on continuous usage our Safety Valves opens up at the set pressure. Our high tensile spring specially fabricated ensures this.

In Range Setting option we give you a lower limit and upper limit of Pressure. You can manually set at required range using the screw at the top.

Information Required for Ordering

  1. Material Required .Option of SS 316 ,SS 304 ,Carbon Steel,Brass,Monel
  2. Inlet Size and Threading and Type(Male or Female)
  3. Outlet Size and Threading and Type(Male or Female)
  4. Set Pressure or Pressure Range

Some Common Sizes for Safety Valve /Pressure Relief Valve are

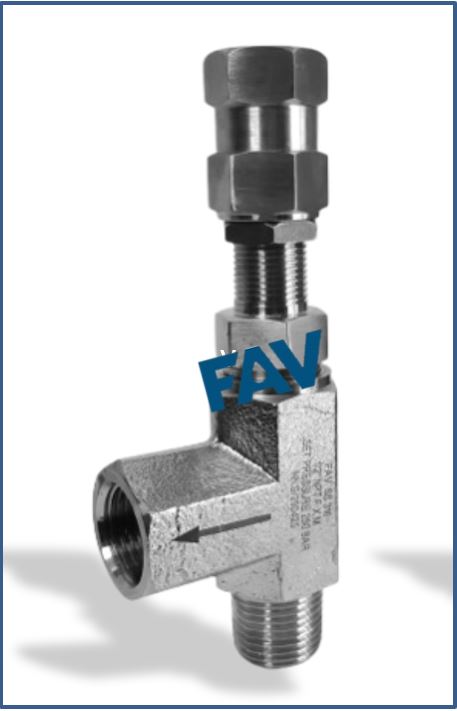

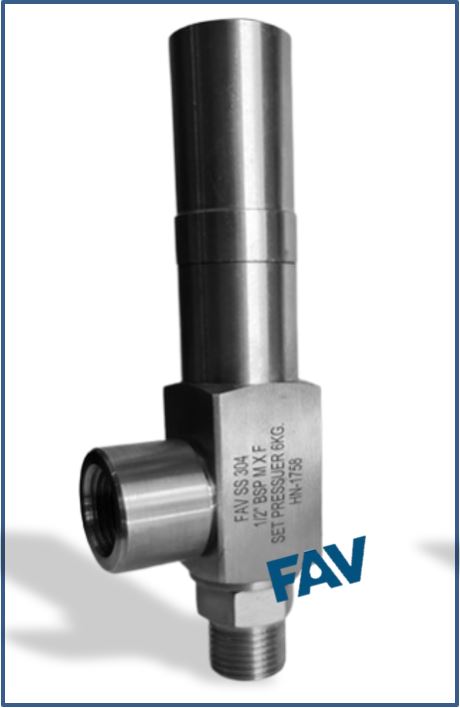

Safety Valve Male x Female

FAV SS 316 Pressure Relief Valve 1/4” NPTM x 1/4” NPTF, Set Pressure 150 psi

FAV SS 316 Pressure Relief Valve 3/8” NPTM x 3/8” NPTF, Set Pressure 150 psi

FAV SS 316 Pressure Relief Valve 1/2” NPTM x 1/2” NPTF, Set Pressure 450 psi

FAV SS 316 Pressure Relief Valve 3/4” NPTM x 3/4” NPTF, Set Pressure 450 psi

FAV SS 316 Pressure Relief Valve 1” NPTM x 1” NPTF, Set Pressure 850 psi

Safety Valve Male x Male

FAV SS 316 Pressure Relief Valve 1/4” NPTM x 1/4” NPTM, Set Pressure 850 psi

FAV SS 316 Pressure Relief Valve 3/8” NPTM x 3/8” NPTM, Set Pressure 1650 psi

FAV SS 316 Pressure Relief Valve 1/2” NPTM x 1/2” NPTM, Set Pressure 1650 psi

FAV SS 316 Pressure Relief Valve 3/4” NPTM x 3/4” NPTM, Set Pressure 150 psi

FAV SS 316 Pressure Relief Valve 1” NPTM x 1” NPTM, Set Pressure 150 psi

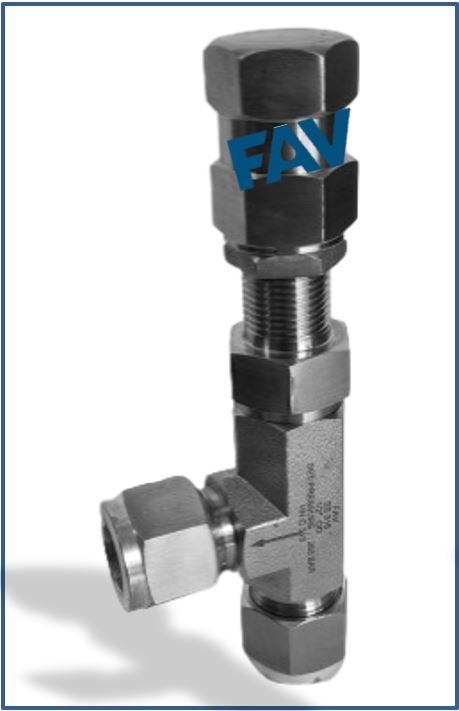

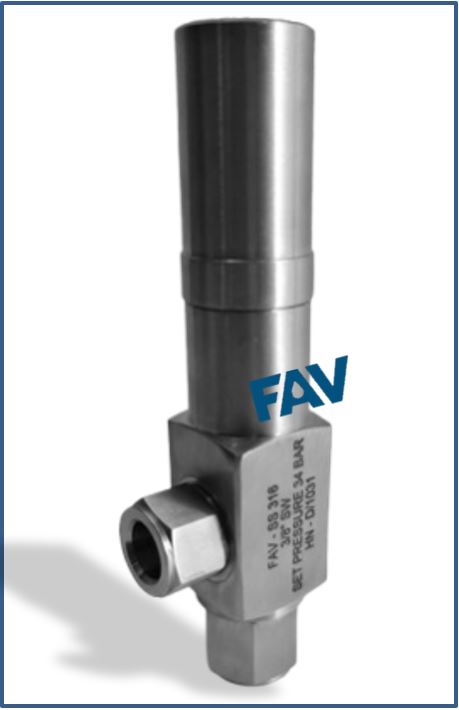

Safety Valve OD x OD

FAV SS 316 Pressure Relief Valve 1/4” OD x 1/4” OD, Set Pressure 450 psi

FAV SS 316 Pressure Relief Valve 3/8” OD x 3/8” OD, Set Pressure 450 psi

FAV SS 316 Pressure Relief Valve 1/2” OD x 1/2” OD, Set Pressure 850 psi

FAV SS 316 Pressure Relief Valve 3/4” OD x 3/4” OD, Set Pressure 1650 psi

FAV SS 316 Pressure Relief Valve 1” OD x 1” OD, Set Pressure 1650 psi

High Pressure Safety Valve/Pressure Relief Valve for up to 6000 psi

Pressure Relief Valve

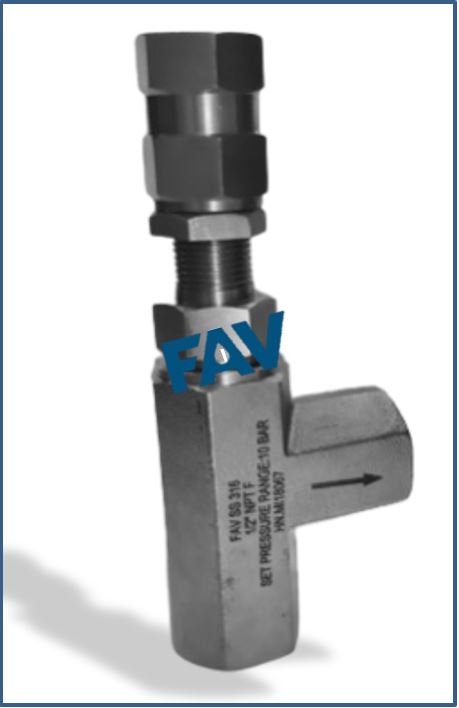

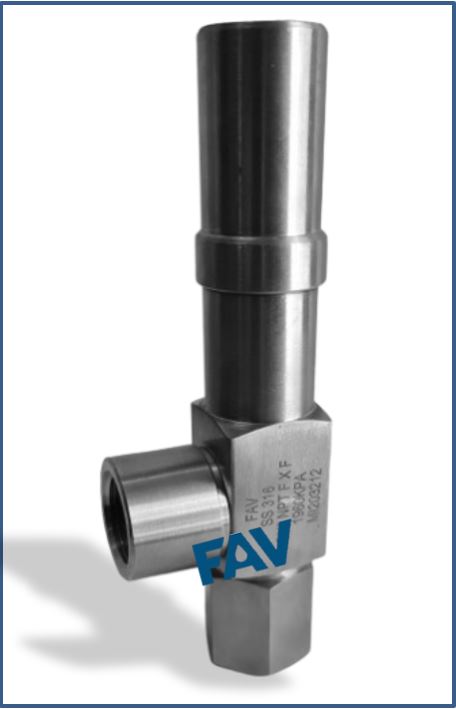

Relief Valves Female
Safety Relief Valve
Pressure Relief Valves
Standard Material Of Construction
Component Material Grade
1 Body SS 316
2 Insert SS 316
3 O Ring Viton
4 Seat Retainer SS 316
5 Stem SS 316
6 O Ring Viton
7 O Ring Viton
8 Back Up Ring PTFE
9 Bonnet SS 316
10 Spring Support SS 316
11 Lock Nut SS 316
12 Cap SS 316
13 Label Polyester
14 Spring ASTM A576 Powder Coating
15 Plug SS 304

1/2” NPT M x F Pressure Relief Valve

Pressure Range 10 Bar to 400 Bar with Different Spring

Sizes are only for Reference it may change.
