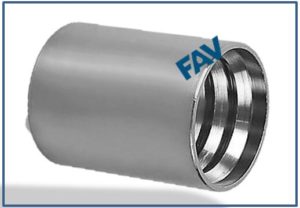

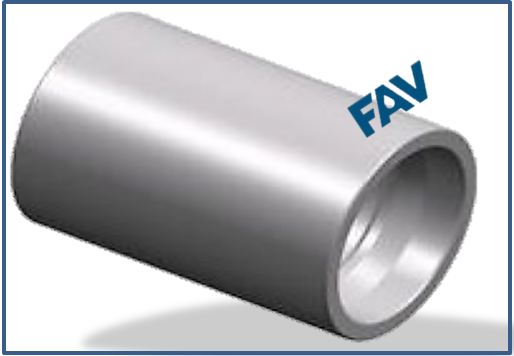

HOSE FERRULE / HOSE CAP FOR CRIMPING - FERRULE FOR SAE100R1AT/DIN20022 1SN HOSE

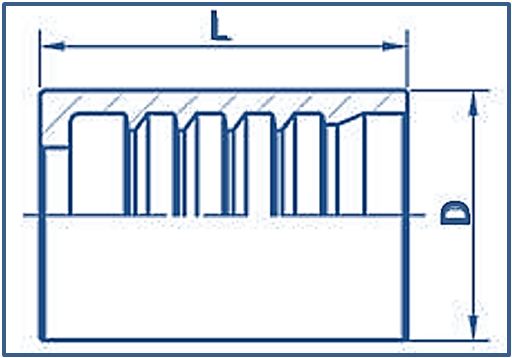

| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| FHF-DIN-03 | 5 | 3 | 17.5 | 27 |
| FHF-DIN-04 | 6 | 4 | 20.6 | 30 |
| FHF-DIN-05 | 8 | 5 | 20.8 | 31 |
| FHF-DIN-06 | 10 | 6 | 23.3 | 32 |
| FHF-DIN-08 | 13 | 8 | 27 | 34 |
| FHF-DIN-10 | 16 | 10 | 30 | 37 |
| FHF-DIN-12 | 19 | 12 | 34 | 43 |
| FHF-DIN-16 | 25 | 16 | 42.6 | 50 |
| FHF-DIN-20 | 32 | 20 | 52 | 59 |
| FHF-DIN-24 | 38 | 24 | 58 | 74 |
| FHF-DIN-32 | 51 | 32 | 72 | 78 |
