2 Way Manifold Valves

2 Way Manifold Valves

Two Way Manifold Valves has  A block and bleed manifold with one block valve and one bleed valve is also known as an isolation valve or block and bleed valve; a block and bleed manifold with multiple valves is also known as an isolation manifold.2 Way Manifold Valves available in SS 316 ,SS 304 , Monel ,Hastelloy, Inconel and Titanium

2 Way Manifold Valves
2 Way Manifolds
2 Way Manifold Valve
Manifold Valve
2 WAY MANIFOLD VALVES
2 Way Manifold valves
2 Way Manifold Valves
2 Way Manifold ,T Type,For Remote Mounting
2 Way Manifold ,T Type,For Remote Mounting
Block and Bleed Valve
Block Bleed Valves
Block and Bleed Valves
Block and Bleed Valve flow

Orifice : 4 mm
Approximate Weight : 1.0 kg.
Pressure : up to 6000 psi.
Temperature: up to 400 c
All dimension in Millimeter

PART No. END CONNECTIONS DIMENSION
  Instrument Connection Process Connection B A
FGV/BBM/01 1/4" MALE 1/4" FEMALE 80 24
FGV/BBM/02 1/4" FEMALE 1/4" FEMALE 80 24
FGV/BBM/03 1/4" MALE 1/4" MALE 80 24
FGV/BBM/04 1/2" MALE 1/2"FEMALE 115 30
FGV/BBM/05 1/2"FEMALE 1/2" MALE 115 30
FGV/BBM/06 1/2" MALE 1/2" MALE 115 30
FGV/BBM/07 1/2" MALE 3/4" FEMALE 115 30
FGV/BBM/08 3/4" FEMALE 1/2" MALE 115 38
FGV/BBM/09 3/4" MALE 3/4" FEMALE 115 38
FGV/BBM/10 3/4" FEMALE 3/4" FEMALE 115 38
FGV/BBM/11 3/4" MALE 3/4" MALE 115 38

The above Manifolds are also available in 10000 psi Pressure Ratings

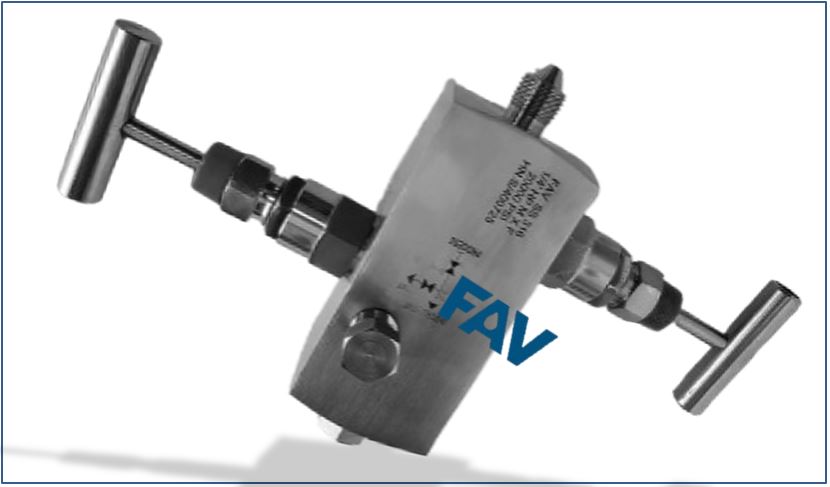

2 Way Manifold Block and Bleed Valve ,10000 psi

2 Way Manifold Valve, Block and Bleed Type, SW

Manifold Valve, Block and Bleed Type, SW
