Hose Fitting (BSP Thread 60° Cone Fitting) - BSP FEMALE 60°O-RING CONE

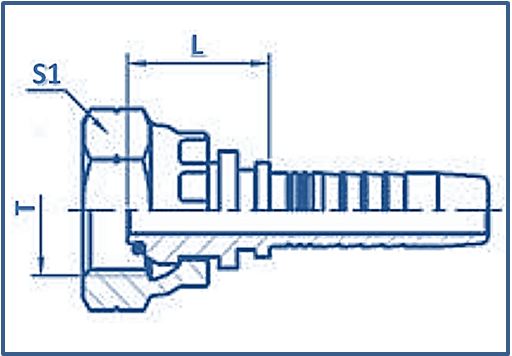

  T HOSE BORE DIMENSIONS
PART NO. THREAD T DN DASH L S1
FHF-TCF-02-04ORT G1/8"X28 6 4 15 14
FHF-TCF-04-04ORT G1/4"X19 6 4 18.5 19
FHF-TCF-04-05ORT G1/4"X19 8 5 19 19
FHF-TCF-04-06ORT G1/4"X19 10 6 19 19
FHF-TCF-06-04ORT G3/8"X19 6 4 18 22
FHF-TCF-06-05ORT G3/8"X19 8 5 19 22
FHF-TCF-06-06ORT G3/8"X19 10 6 20 22
FHF-TCF-06-08ORT G3/8"X19 13 8 20 22
FHF-TCF-08-06ORT G1/2"X14 10 6 21 27
FHF-TCF-08-08ORT G1/2"X14 13 8 22 27
FHF-TCF-10-08ORT G5/8"X14 13 8 22 30
FHF-TCF-10-10ORT G5/8"X14 16 10 23 30
FHF-TCF-12-10ORT G3/4"X14 16 10 23 32
FHF-TCF-12-12ORT G3/4"X14 19 12 24 32
FHF-TCF-16-12ORT G1"X11 19 12 25 41
FHF-TCF-16-16ORT G1"X11 25 16 26 41
FHF-TCF-20-16ORT G1.1/4"X11 25 16 28.5 50
FHF-TCF-20-20ORT G1.1/4"X11 32 20 31 50
FHF-TCF-24-20ORT G1.1/2"X11 32 24 32 55
FHF-TCF-24-24ORT G1.1/2"X11 38 24 32 55
FHF-TCF-32-24ORT G2"X11 38 32 33.5 70
FHF-TCF-32-32ORT G2"X11 51 32 34 70
