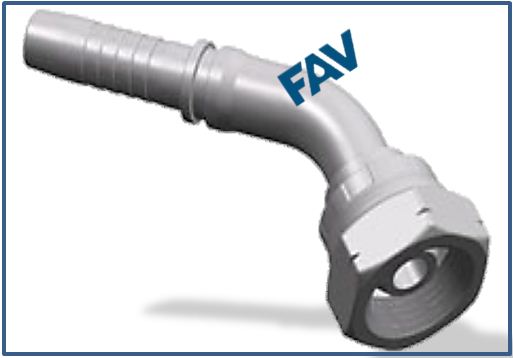

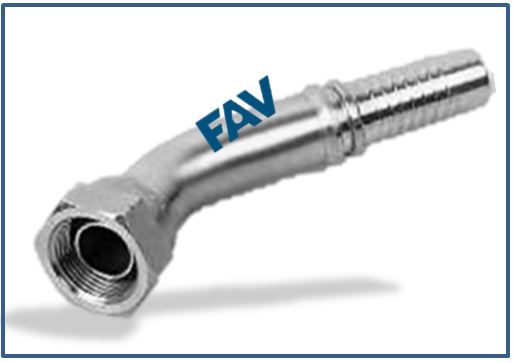

Hose Fitting (BSP Thread 60° Cone Fitting) - 45°ELBOW BSP FEMALE 60°CONE

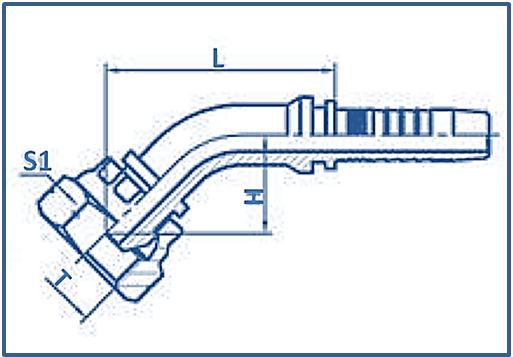

  T HOSE BORE DIMENSIONS
PART NO. THREAD T DN DASH L H S1
FHF-SFB-02-04T G1/8"X28 6 4 41.3 17.5 14
FHF-SFB-04-04T G1/4"X19 6 4 42.4 18.6 19
FHF-SFB-04-05T G1/4"X19 8 5 42.6 18.9 19
FHF-SFB-04-06T G1/4"X19 10 6 47.1 21.2 19
FHF-SFB-06-04T G3/8"X19 6 4 41.7 17.9 22
FHF-SFB-06-05T G3/8"X19 8 5 41.9 18.2 22
FHF-SFB-06-06T G3/8"X19 10 6 47.5 21.5 22
FHF-SFB-06-08T G3/8"X19 13 8 55.5 24.3 22
FHF-SFB-08-06T G1/2"X14 10 6 48.2 22.3 27
FHF-SFB-08-08T G1/2"X14 13 8 57 25.7 27
FHF-SFB-10-08T G5/8"X14 13 8 59 26.5 30
FHF-SFB-10-10T G5/8"X14 16 10 67 27.7 30
FHF-SFB-12-10T G3/4"X14 16 10 65.2 26 32
FHF-SFB-12-12T G3/4"X14 13 12 73 30.5 32
FHF-SFB-16-12T G1"X11 19 12 72.2 29.5 41
FHF-SFB-16-16T G1"X11 25 16 83.3 33.8 41
FHF-SFB-20-16T G1.1/4"X11 25 16 89 36 50
FHF-SFB-20-20T G1.1/4"X11 32 20 101 40 50
FHF-SFB-24-20T G1.1/2"X11 32 20 101.5 41 55
FHF-SFB-24-24T G1.1/2"X11 38 24 118 48 55
FHF-SFB-32-24T G2"X11 38 24 118.5 47.5 70
FHF-SFB-32-32T G2"X11 51 32 136.2 56.2 70
