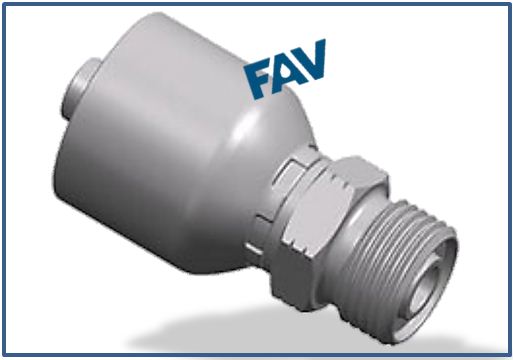

One piece Hose Fitting (ORFS Tube Fitting) - ORFS MALE O-RING SEAL

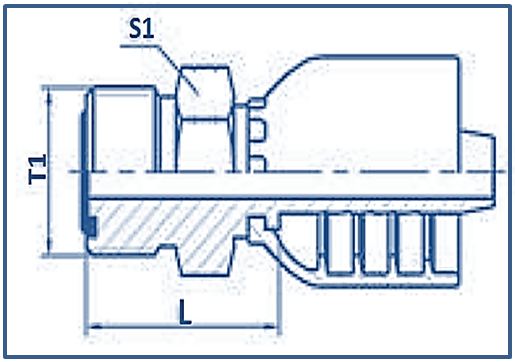

| HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD T | DN | DASH | L | S1 |
| FHF-RFS-04-04RW | 9/16＂X18 | 6 | 4 | 22.3 | 17 |
| FHF-RFS-06-04RW | 11/16＂X16 | 6 | 4 | 23.5 | 19 |
| FHF-RFS-06-06RW | 11/16＂X16 | 10 | 6 | 24 | 19 |
| FHF-RFS-08-06RW | 13/16＂X16 | 10 | 6 | 27.5 | 22 |
| FHF-RFS-08-08RW | 13/16＂X16 | 12 | 8 | 28.5 | 22 |
| FHF-RFS-08-10RW | 13/16＂X16 | 16 | 10 | 28.5 | 22 |
| FHF-RFS-10-08RW | 1/4＂X14 | 12 | 8 | 32.5 | 27 |
| FHF-RFS-10-10RW | 1/4＂X14 | 16 | 10 | 33.5 | 27 |
| FHF-RFS-12-08RW | 1.3/16＂X12 | 12 | 8 | 35.5 | 32 |
| FHF-RFS-12-10RW | 1.3/16＂X12 | 16 | 10 | 36 | 32 |
| FHF-RFS-12-12RW | 1.3/16＂X12 | 20 | 12 | 36.5 | 32 |
| FHF-RFS-16-12RW | 1.7/16＂X12 | 20 | 12 | 37 | 38 |
| FHF-RFS-16-16RW | 1.7/16＂X12 | 25 | 16 | 38.5 | 38 |
| FHF-RFS-20-20RW | 1.11/16＂X12 | 32 | 20 | 41.5 | 46 |
| FHF-RFS-24-24RW | 2＂X12 | 40 | 24 | 43 | 55 |
