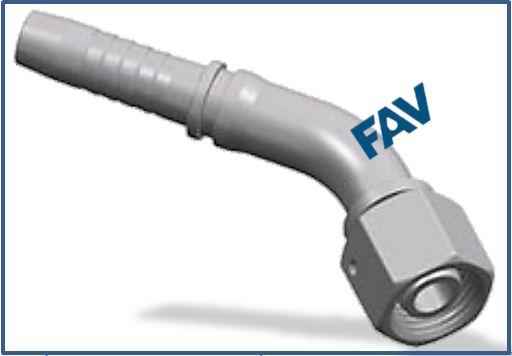

Hose Fitting (Metric Thread 24° Cone Series) - 45°ELBOW METRIC FEMALE 24°CONE O-RING L.T

 HOSE BORE  DIMENSIONS
PART NO. THREAD T  DN  DASH TUBE O.D L H S1
FHF-MTC-12-04W M12X1.5 6 4 6 44.5 20.7 14
FHF-MTC-14-04T M14X1.5 6 4 8 41.7 17.9 17
FHF-MTC-14-05W M14X1.5 8 5 8 45 21.4 17
FHF-MTC-14-06W M14X1.5 10 6 8 49.6 23.7 17
FHF-MTC-16-04T M16X1.5 6 4 10 39 19 19
FHF-MTC-16-05T M16X1.5 8 5 10 42 18 19
FHF-MTC-16-06W M16X1.5 10 6 10 50 24 19
FHF-MTC-18-05T M18X1.5 8 5 12 46 22 22
FHF-MTC-18-06T M18X1.5 10 6 12 47.5 21.5 22
FHF-MTC-18-08W M18X1.5 13 8 12 59 27.8 22
FHF-MTC-22-08T M22X1.5 13 8 15 56 24.6 27
FHF-MTC-22-10W M22X1.5 16 10 15 69.4 30.2 27
FHF-MTC-26-10T M26X1.5 16 10 18 68 28.8 32
FHF-MTC-26-12W M26X1.5 19 12 18 76 33.4 32
FHF-MTC-30-10T M30X2 16 10 22 68 28.5 36
FHF-MTC-30-12T M30X2 19 12 22 72.8 30.2 36
FHF-MTC-30-16W M30X2 25 16 22 89.5 36.5 36
FHF-MTC-36-12T M36X2 19 12 28 74.3 31.6 41
FHF-MTC-36-14T M36X2 22 14 28 78.5 33.3 41
FHF-MTC-36-16T M36X2 25 16 28 83.6 34.2 41
FHF-MTC-36-20W M36X2 32 20 28 102 41.5 41
FHF-MTC-45-16T M45X2 25 16 35 84 34.6 50
FHF-MTC-45-20T M45X2 32 20 35 99.8 39.1 50
FHF-MTC-45-24W M45X2 38 24 35 120 48.9 50
FHF-MTC-52-20T M52X2 32 20 42 100.9 40.1 60
FHF-MTC-52-24T M52X2 38 24 42 115 45.3 60
FHF-MTC-52-32W M52X2 51 32 42 137.6 57.6 60
