Alloy Steel Sampling Cylinders

Are you looking for reliable, high-pressure Alloy Steel Sampling Cylinders for safe hydrocarbon, gas, and chemical sample collection? We manufacture and supply high-performance sampling cylinders designed to withstand harsh industrial environments, high pressures, and corrosive media.

Our sampling cylinders are available in both Single-Ended and Double-Ended configurations to meet diverse process requirements across oil & gas, petrochemical, refining, and power generation industries.

Technical Specifications at a Glance

• Material of Construction (MOC): High-Grade Alloy Steel
• End Connections: 1/2″ NPT Female (Custom sizes available)
• Standard Capacity: 3000 ML / 3 Liters (Custom capacities available upon request)
• Working Pressure Rating: Up to 1000 PSI / High Pressure Range
• Design Options: Single Ended Sampling Cylinder | Double Ended Sampling Cylinder
• Applications: Gas Sampling, Liquid Sampling, Hydrocarbon Collection, Lab Testing

Types of Alloy Steel Sampling Cylinders

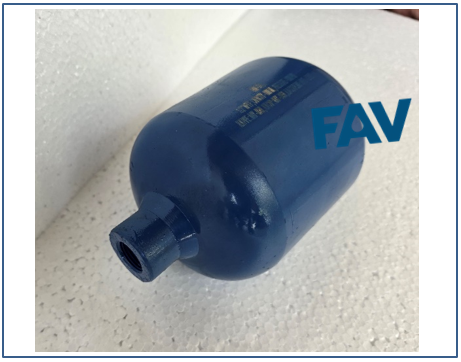

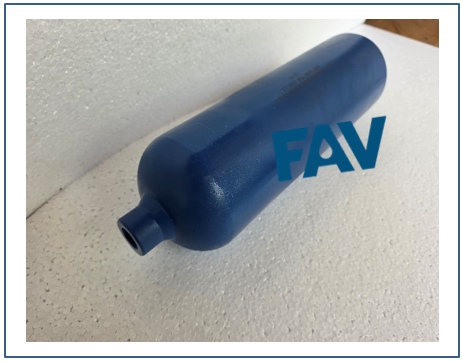

1. Single Ended Alloy Steel Sampling Cylinder

Single-ended cylinders feature a single port (connection) at one end, equipped with a valve or plug.

• Best Used For: Simple liquid and non-volatile sample collection where purge/bypass functionality is not required.
• Key Features: Compact design, leak-tight sealing, cost-effective, easy handling in tight spaces.

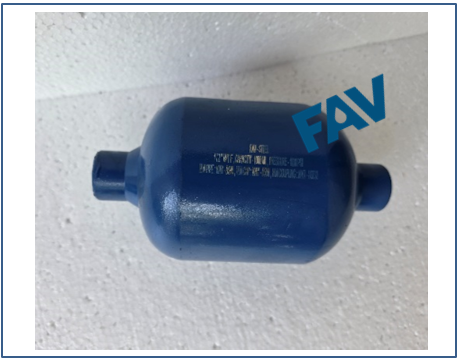

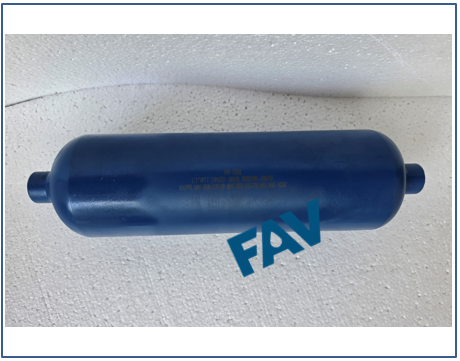

2. Double Ended Alloy Steel Sampling Cylinder

Double-ended cylinders feature connection ports at both ends, allowing fluid to flow through during the sampling process.

• Best Used For: Gas sampling, volatile liquid sampling, and systems requiring pre-sampling purging/flushing to prevent sample contamination.
• Key Features: Complete sample displacement, dual-valve integration, suitable for high-pressure gas sampling.

Key Advantages of Our Alloy Steel Sampling Cylinders

• High Pressure Resistance: Designed and rated for pressures up to 1000 PSI+, ensuring complete safety during sample collection and transport.
• Superior Durability: Made from robust alloy steel that offers high tensile strength and resistance to stress corrosion cracking.
• Precision Machining: Feature clean 1/2″ NPT Female threads for leak-free connection with valves, pressure gauges, and quick-connect fittings.
• Smooth Internal Finish: Minimizes sample absorption and prevents cross-contamination between batches.
• Customization Options: Available in various capacities (e.g., 300 ML, 500 ML, 1000 ML, 3000 ML) with custom surface coatings and valve options.

Major Industrial Applications

Our Alloy Steel Sample Bombs / Sampling Cylinders are widely used in:

• Petrochemical Plants & Refineries: Safe collection of LPG, natural gas, and liquid hydrocarbons.
• Chemical Processing: Handling high-pressure chemical samples for laboratory analysis.
• Oil & Gas Pipelines: Transporting representative gas/liquid samples from field to lab.
• Power Plants & Research Facilities: Boiler feed water, steam, and gas analysis.

Why Choose Us for Alloy Steel Sampling Cylinders?

• Strict Quality Control: Every cylinder undergoes hydrostatic pressure testing to guarantee leak-proof performance.
• Industry Standards Compliant: Manufactured in compliance with international design and safety standards.

Complete Accessories: We also supply needle valves, rupture disc units, pressure relief valves, and carrying handles.
