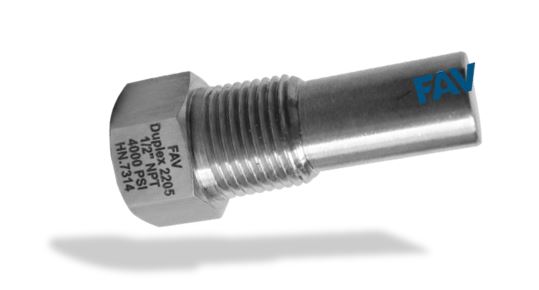

Duplex 2205 Thermowell

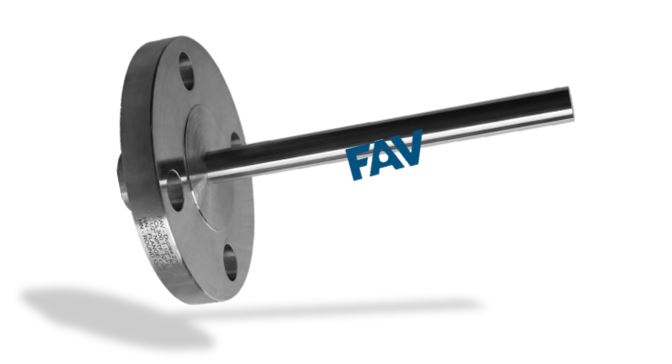

FAV is the Manufacturer of Duplex 2205 Thermowell, Duplex Straight Thermowell and Duplex Flanged Thermowell.

Duplex stainless steels are becoming more common. They are being offered by all the major stainless steel mills for a number of reasons:

  1. Higher strength leading to weight saving
  2. Greater corrosion resistance particularly stress corrosion cracking
  3. Better price stability
  4. Lower price

Properties

The combination of chromium, molybdenum and nitrogen convey the good resistance of 2205 to chloride pitting and crevice corrosion. This resistance is extremely important for services such as marine environments, brackish water, bleaching operations, closed loop water systems and some food processing applications. The high chromium, molybdenum and nitrogen contents of 2205 provide corrosion resistance superior to common stainless steels, such as, 316L and 317L in most environments.

Advantages

The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).

2205 duplex Thermowell is a cost effective solution for many applications where the 300 series stainless steels are susceptible to chloride stress corrosion cracking. Stress corrosion cracking occurs when stainless steels are subjected to tensile stress, while in contact with solutions containing chlorides. Increasing temperatures also increase the susceptibility of stainless steels to stress corrosion cracking.

What are the characteristics of Duplex Thermowell?

  1. High resistance to chloride stress corrosion cracking
  2. Resistance to chloride pitting and crevice corrosion
  3. Good general corrosion resistance
  4. Good sulphide stress corrosion resistance
  5. High Strength
  6. Good weldability and workability

In what applications is Duplex 2205 Thermowell used?

  1. Chemical process vessels, piping and heat exchangers
  2. Pulp mill digesters, bleach washers, chip pre-steaming vessels
  3. Food processing equipment
  4. Oil field piping and heat exchangers
  5. Flue gas desulfurization equipment

Advantages of Duplex 2205 Thermowell

  1. Duplex Thermowells do not twist during installation.
  2. Low torque Operation
  3. Positive leak free seal assembly and reassembly
  4. Variety of end connections and patterns as per Customer Requests
