Elbow,10000 psi
Elbow,10000 psi

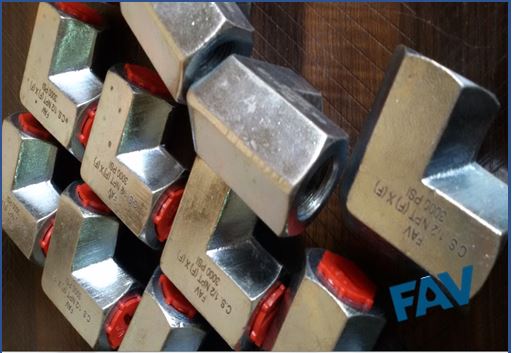

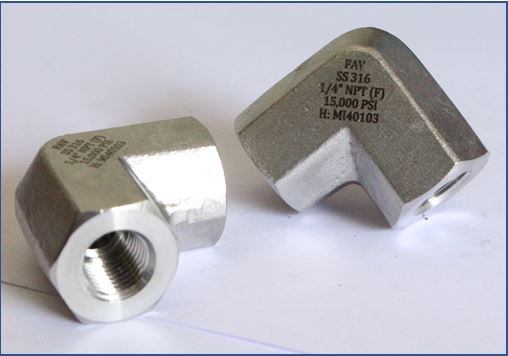

ELBOW/1OK FEMALE - FEMALE

FAV is the manufacturer of High Pressure Female Elbow in 10000 psi,700 Bars. It has NPT Female Connection on both sides with shape of elbow (L shape)

Standard Material for Female Elbow,10000 psi is SS 316 but is also available in Carbon Steel, Brass, Hastelloy , Inconel alloys , Monel alloys , Titanium , Super Duplex & Duplex .

Common sizes are 1/4" NPT Female , 3/8" NPT Female , 1/2" NPT Female.

High Pressure Fittings are used in almost all industrial applications where threaded connections are involved . It also used in Hydro testing setup .



PART No. P NPTF L C
FHPF/10K/FE/2I 1/8" 1.12" 1.12" 0.75"
FHPF/10K/FE/4I 1/4" 1.50" 1.50" 1.00"
FHPF/10K/FE/6I 3/8" 1.85" 1.85" 1.25"
FHPF/10K/FE/8I 1/2" 2.25" 2.25" 1.50"

For more information about Fittings click Instrument Fittings
