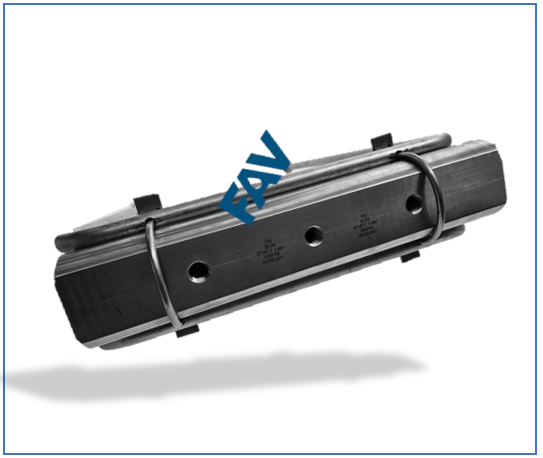

Hydrotesting Air Distribution Manifold 10000 to 15000 PSI
Hydrotesting Air Distribution Manifold 10000 to 15000 PSI is designed for high-pressure hydrostatic testing, pressure testing and controlled distribution of air or testing media to multiple test points from a single originating source. These High Pressure Test Manifolds and Air Headers provide a compact and efficient alternative to multiple individual valve assemblies and are suitable for demanding industrial applications.
Our Hydrotesting Air Distribution Manifolds are available in Stainless Steel 316, Stainless Steel 304, Monel, Hastelloy, Inconel 625, Inconel 825, Incoloy 600, Titanium Grade 2, Duplex, Super Duplex and other exotic materials. Material selection can be customized according to pressure, temperature, corrosion resistance and application requirements.

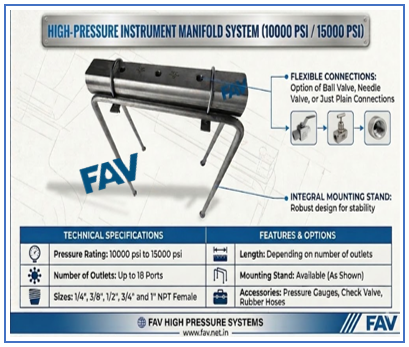

Standard Specifications
- Pressure Rating: 10,000 PSI to 15,000 PSI
- Number of Outlets: Up to 18 ports
- Available Outlet Sizes: 1/4″, 3/8″, 1/2″, 3/4″ and 1″ NPT Female
- Valve Options: Needle Valves; Ball Valves also available
- Connection Types: NPT, BSP, Butt Weld, Socket Weld, Flanged and Compression
- Manifold Length: Customized according to the number of outlets
- Mounting Stand: Available
- Material: SS 316, SS 304, Duplex, Super Duplex, Monel, Hastelloy, Inconel, Incoloy, Titanium and other exotic materials
Key Features
- Designed for high-pressure hydrostatic and pressure testing
- Suitable for pressure ratings up to 15,000 PSI
- Multiple outlets for distributing pressure to several test points
- Compact alternative to multiple individual valve assemblies
- Heavy-duty construction for demanding industrial environments
- Individual outlet isolation available
- Precision-machined ports for reliable and leak-resistant connections
- Custom outlet quantity, spacing and manifold length
- Suitable for repeated high-pressure testing cycles
- Available with customized mounting arrangements
- Manufactured as per customer specifications and application requirement
