Low Pressure LP Female to Type M Male Coupling
Adapter LP Female X Type M Male

Adapter Low Pressure LP Female to Type "M" Male Coupling 10000 psi

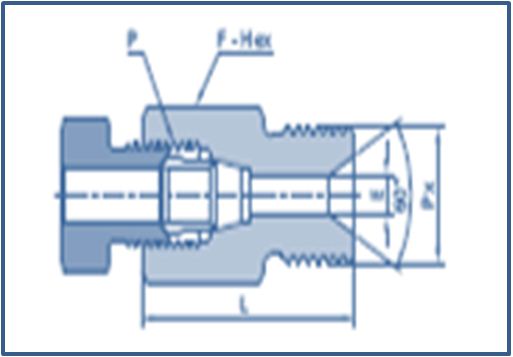

Ordering Number P Connection Type Px Connection type Dimension in (mm) Working Pressure psig (bar )
L F E
FAV/LPF/M/1 1/2-20 9/16-18 1.13 (28.6) 0.75 (19.1) 0.09 (2.4) 15000 (1034)
FAV/LPF/M/2 9/16-18 3/4-16 1.37 (34.9) 0.63 (15.9) 0.09 (2.4) 15000 (1034)
FAV/LPF/M/3 5/8-18 9/16-18 1.44 (36.5) 0.75 (19.1) 0.19 (4.8) 15000 (1034)
FAV/LPF/M/4 3/8-24 3/4-16 1.63 (41.3) 1.00 (25.4) 0.15 (3.8) 15000 (1034)
FAV/LPF/M/5 1/2-20 7/8-14 1.50 (38.1) 0.75 (19.1) 0.09 (2.4) 15000 (1034)
FAV/LPF/M/6 1/2-20 9/16-18 1.63 (41.3) 0.75 (19.1) 0.25 (6.4) 15000 (1034)
FAV/LPF/M/7 5/8-18 3/4-16 1.75 (44.5) 1.00 (25.4) 0.15 (3.8) 15000 (1034)
FAV/LPF/M/8 5/8-18 7/8-14 1.63 (41.3) 1.00 (25.4) 0.25 (6.4) 15000 (1034)
FAV/LPF/M/9 5/8-18 1-12 1.63 (41.3) 1.00 (25.4) 0.09 (2.4) 15000 (1034)
FAV/LPF/M/10 13/16-16 9/16-18 1.63 (41.3) 1.00 (25.4) 0.29 (7.4) 15000 (1034)
FAV/LPF/M/11 13/16-16 3/4-16 1.81 (46.1) 1.00 (25.4) 0.15 (3.8) 15000 (1034)
FAV/LPF/M/12 13/16-16 7/8-14 1.75 (44.5) 1.00 (25.4) 0.37 (9.5) 15000 (1034)
FAV/LPF/M/13 13/16-16 1-12 1.75 (44.5) 1.37 (34.9) 0.37 (9.5) 15000 (1034)
FAV/LPF/M/14 13/16-16 1-5/16-12 1.06 (27.0) 0.63 (15.9) 0.09 (2.4) 15000 (1034)



Some Common Sizes for SS 316 Adapter Low Pressure Female X Type M Male are

  1. FAV SS 316 Adapter 1/4” LP Female x 9/16” Type M Male 15000 psi
  2. FAV SS 316 Adapter 1/4” LP Female x 3/4” Type M Male 15000 psi
  3. FAV SS 316 Adapter 3/8” LP Female x 9/16” Type M Male 15000 psi
  4. FAV SS 316 Adapter 3/8” LP Female x 1-5/16” Type M Male 15000 psi
  5. FAV SS 316 Adapter 9/16” LP Female x 1-5/16” Type M Male 15000 psi
  6. FAV SS 316 Adapter 9/16” LP Female x 3/4” Type M Male 15000 psi
