Low Pressure LP Male to Male NPT Threads Adapter 10000 psi
Low Pressure LP Male to Male NPT Threads Adapter

Adapter Low Pressure LP Male to Male NPT Threads 10000 psi

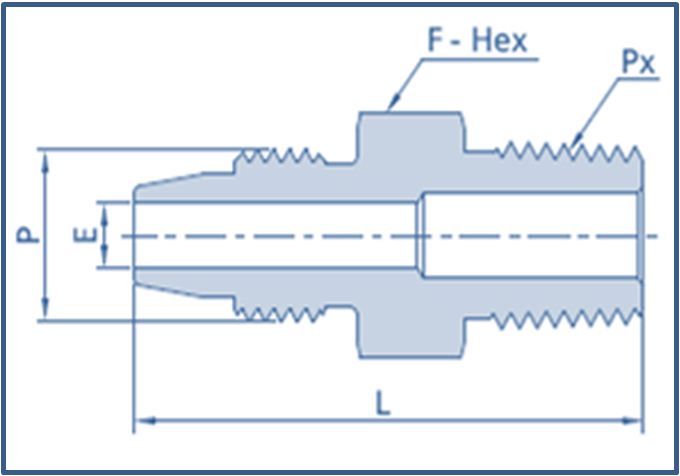

Ordering Number Px-Connection Type Dimension, in. (mm) Working Pressure psig (bar)
L F E
FAV/AF/LPM/1 1/8 NPT 1.19 (30.2) 0.50 (12.7) 0.09 (2.4) 15000 (1034)
FAV/AF/LPM/2 1/4 NPT 1.44 (36.5) 0.56 (14.3) 0.09 (2.4) 15000 (1034)
FAV/AF/LPM/3 3/8 NPT 1.50 (38.1) 0.69 (17.5) 0.09 (2.4) 15000 (1034)
FAV/AF/LPM/4 1/2 NPT 1.75 (44.5) 0.87 (22.2) 0.09 (2.4) 15000 (1034)
FAV/AF/LPM/5 3/4 NPT 1.81 (46.0) 1.06 (27.0) 0.09 (2.4) 10000 (690)
FAV/AF/LPM/6 1 NPT 2.13 (54.0) 1.37 (34.9) 0.09 (2.4) 10000 (690)
FAV/AF/LPM/7 1/8 NPT 1.44 (36.5) 0.63 (15.9) 0.19 (4.8) 15000 (1034)
FAV/AF/LPM/8 1/4 NPT 1.63 (41.3) 0.63 (15.9) 0.19 (4.8) 15000 (1034)
FAV/AF/LPM/9 3/8 NPT 1.63 (41.3) 0.69 (17.5) 0.19 (4.8) 15000 (1034)
FAV/AF/LPM/10 1/2 NPT 1.87 (47.6) 0.87 (22.2) 0.19 (4.8) 15000 (1034)
FAV/AF/LPM/11 3/4 NPT 1.94 (49.2) 1.06 (27.0) 0.19 (4.8) 10000 (690)
FAV/AF/LPM/12 1 NPT 2.25 (57.2) 1.37 (34.9) 0.19 (4.8) 10000 (690)



Some Common Sizes for SS 316 Adapter Low Pressure Male X NPT Male are

  1. FAV SS 316 Adapter 1/8” LP Male x 1/8” NPTM 15000 psi
  2. FAV SS 316 Adapter 1/4” LP Male x 1/4” NPTM 15000 psi
  3. FAV SS 316 Adapter 3/8” LP Male x 3/8” NPTM 15000 psi
  4. FAV SS 316 Adapter 1/2” LP Male x 1/2” NPTM 15000 psi
  5. FAV SS 316 Adapter 3/4” LP Male x 3/4” NPTM 10000 psi
  6. FAV SS 316 Adapter 1” LP Male x 1” NPTM 10000 psi
