Medium Pressure MP Female to Low Pressure LP Female Adapter 15000 psi
Medium Pressure MP Female to Low Pressure LP Female

Adapter Medium Pressure MP Female to Low Pressure LP Female 15000 psi

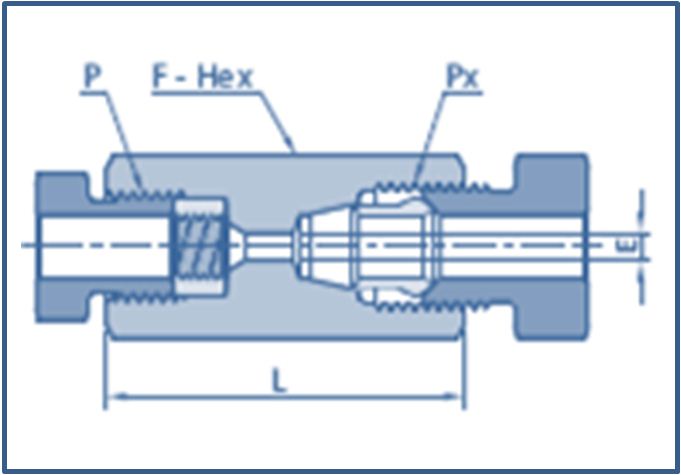

Ordering Number P Connection PConnection                       Dimension in (mm) Working Pressure
Type Type L E F
FAV/LPMP/A1 7/16-20 3/8-24 1.25 (31.8) 0.63 (15.9) 0.09 (2.4) 15000 (1034)
FAV/LPMP/A2 7/16-20 1/2-20 1.50 (38.1) 0.63 (15.9) 0.11 (2.8) 15000 (1034)
FAV/LPMP/A3 7/16-20 5/8-18 1.63 (41.3) 0.75 (19.1) 0.11 (2.8) 15000 (1034)
FAV/LPMP/A4 7/16-20 13/16-16 1.75 (44.5) 1.00 (25.4) 0.11 (2.8) 15000 (1034)
FAV/LPMP/A5 9/16-18 3/8-24 1.44 (36.5) 0.75 (19.1) 0.09 (2.4) 15000 (1034)
FAV/LPMP/A6 9/16-18 1/2-20 1.69 (42.9) 1.00 (25.4) 0.19 (4.8) 15000 (1034)
FAV/LPMP/A7 9/16-18 5/8-18 1.75 (44.5) 0.75 (19.1) 0.20 (5.2) 15000 (1034)
FAV/LPMP/A8 9/16-18 13/16-16 1.87 (47.6) 0.75 (19.1 0.20 (5.2) 15000 (1034)



Some Common Sizes for SS 316 Adapter Medium Pressure Female X Low Pressure Female are

  1. FAV SS 316 Adapter 1/4” MP Female x 1/4” LP Female 15000 psi
  2. FAV SS 316 Adapter 3/8” MP Female x 1/4” LP Female 15000 psi
  3. FAV SS 316 Adapter 3/8” MP Female x 3/8” LP Female 15000 psi
  4. FAV SS 316 Adapter 9/16” MP Female x 1/4” LP Female 15000 psi
  5. FAV SS 316 Adapter 9/16” MP Female x 3/8” LP Female 15000 psi
  6. FAV SS 316 Adapter 9/16” MP Female x 9/16” LP Female 15000 psi
