Needle Valves Female

Needle Valve, 3000 psi & 6000 psi, NPT/BSP

We are manufacturers of Needle Valve in NPT ,BSP Threadings . Pressure range from 3000 psi to 6000 psi .

Materials

Needle Valve available in  Stainless Steel 316, Stainless Steel 304 , Monel 400 and Monel 5000, ,Hstelloy,Inconel 625 and 825 ,Incoloy 600,Titatnium Grade 2 ,Super Duplex & other exotic material.

For sizes 2" and above click here

Needle Valves
Needle Valve,Female , 6000 psi,Double Bonnet

Standard and most commonly used Needle Valve . Comes with Double Bonnet Union Spindle with PTFE Seats as standard .

PART No. SIZE A B ±C D
FNV/FF/01 1/8 19 50 65 45
FNV/FF/02 1/4 22 50 70 50
FNV/FF/03 3/8 25 55 75 55
FNV/FF/04 1/2 30 65 85 55
FNV/FF/05 3/4" 34 75 92 60
FNV/FF/06 1 " 40 85 100 65
FNV/FF/07 1 1/4" 54 90 120 80
FNV/FF/08 1 1/2" 62 110 130 88
FNV/FF/09 2 " 72 120 150 95



Needle Valve 6000 psi
Needle Valve,Male X Female , 6000 psi,Double Bonnet

Standard and most commonly used Needle Valve . Comes with Double Bonnet Union Spindle with PTFE Seats as standard .

PART No. SIZE A B ±C D
FNV/MF/01 1/8 19 50 65 45
FNV/MF/02 1/4 22 50 70 50
FNV/MF/03 3/8 25 55 75 55
FNV/MF/04 1/2 30 65 85 55
FNV/MF/05 3/4 36 75 95 65
FNV/MF/06 1 " 40 85 100 65
FNV/MF/07 1 1/4" 54 90 120 80
FNV/MF/08 1 1/2" 62 110 130 88
FNV/MF/09 2 " 72 120 150 95
Male Needle Valve
Needle Valve Male 6000 psi

Male X Male are not as common as Female Needle Valves but still use in many applications. Comes with Double Bonnet Union Spindle with PTFE Seats as standard .

PART No. SIZE A B ±C D
FNV/MM/01 1/8 19 50 65 45
FNV/MM/02 1/4 22 50 70 50
FNV/MM/03 3/8 25 55 75 55
FNV/MM/04 1/2 30 65 85 55
FNV/MM/05 3/4 36 75 95 65
FNV/MM/06 1 " 40 85 100 65
FNV/MM/07 1 1/4" 54 90 120 80
FNV/MM/08 1 1/2" 62 110 130 88
FNV/MM/09 2 " 72 120 150 95



Needle Valve Manufacturer
Needle Valves Stockists

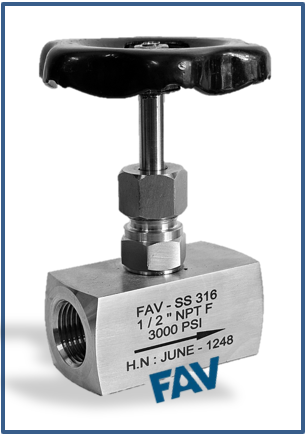

Commonly used for Low Pressure upto 3000 psi . Cost Effective Single Bonnet Option .

PART No. SIZE A B ±C D
FNV/SFF/01 1/8 17 45 55 40
FNV/SFF/02 1/4 19 50 65 45
FNV/SFF/03 3/8 22 50 70 50
FNV/SFF/04 1/2 25 55 75 55
FNV/SFF/05 3/4" 30 65 85 55
FNV/SFF/06 1 " 34 75 92 60
FNV/SFF/07 1 1/4" 40 85 100 65
FNV/SFF/08 1 1/2" 54 90 120 80
FNV/SFF/09 2 " 62 110 130 88



Needle Valves India
Needle Valve Sizes

Commonly used for Low Pressure upto 3000 psi . Cost Effective Single Bonnet Option .

PART No. SIZE A B ±C D
FNV/SMF/01 1/8 17 45 55 40
FNV/SMF/02 1/4 19 50 65 45
FNV/SMF/03 3/8 22 50 70 50
FNV/SMF/04 1/2 25 55 75 55
FNV/SMF/05 3/4" 30 65 85 55
FNV/SMF/06 1 " 34 75 92 60
FNV/SMF/07 1 1/4" 40 85 100 65
FNV/SMF/08 1 1/2" 54 90 120 80
FNV/SMF/09 2 " 62 110 130 88
Needle Valves
Needle Valves

Commonly used for Low Pressure upto 6000 psi . Cost Effective Single Bonnet Option .

PART No. SIZE A B ±C D
FNV/DMF/01 1/8 17 45 55 40
FNV/DMF/02 1/4 19 50 65 45
FNV/DMF/03 3/8 22 50 70 50
FNV/DMF/04 1/2 25 55 75 55
FNV/DMF/05 3/4" 30 65 85 55
FNV/DMF/06 1 " 34 75 92 60
FNV/DMF/07 1 1/4" 40 85 100 65
FNV/DMF/08 1 1/2" 54 90 120 80
FNV/DMF/09 2 " 62 110 130 88
