Needle & Gauge Valve

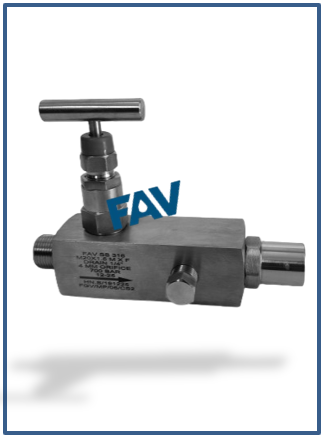

Needle Valve ,Multiport Type with Vent Plug
Needle Valve Guage Type with 4 ports ,Male X Female
GAUGE VALVE ,MULTIPORT TYPE 6000 psi and 10000psi Female x Female
GAUGE ROOT VALVE-STANDARD LENGTH 6000 psi and 10000psi

Needle & Gauge Valve

Multiport  Gauge valve is basics Single Isolation Needle Valve with more then 1 one port on the outlet side . So generally 1 port is used for Pressure Gauges and the other one is used for Process Line . This is widely used method of installing gauge in a line .  There are occasionally used with Solid Plugs or Bleeder Plugs as shown in the below photos . They are basically Single Isolation Needle Valve with more then 1 one port on the outlet side . So generally 1 port is used for Pressure Gauges and the other one is used for Process Line . This is widely used method of installing gauge in a line .  There are occasionally used with Solid Plugs or Bleeder Plugs as shown in the below photos .

PART No. END CONNECTIONS DIMENSION
  P P1 A ± C D E
FGV/MP/05 1/4" FEMALE 1/4" FEMALE 90 6 2 2 2 40
FGV/MP/06 1/2"FEMALE 1/2" FEMALE 1 1 5 8 4 3 0 55
FGV/MP/07 1/2" FEMALE 1/2" EXTEND ED 2 1 5 8 4 3 0 55
FGV/MP/08 3/4" FEMALE 3/4" EXTEND ED 2 1 5 8 4 3 8 55
FGV/MP/01 1/2" MALE 1/2" FEMALE 1 1 5 8 4 3 0 55
FGV/MP/02 1/2" MALE 3/4" FEMALE 1 1 5 8 4 3 0 55
FGV/MP/03 3/4" MALE 3/4" FEMALE 1 1 5 8 4 3 8 55
FGV/MP/04   3/4"MALE 1/2" FEMALE 1 1 5 8 4 3 0 55
