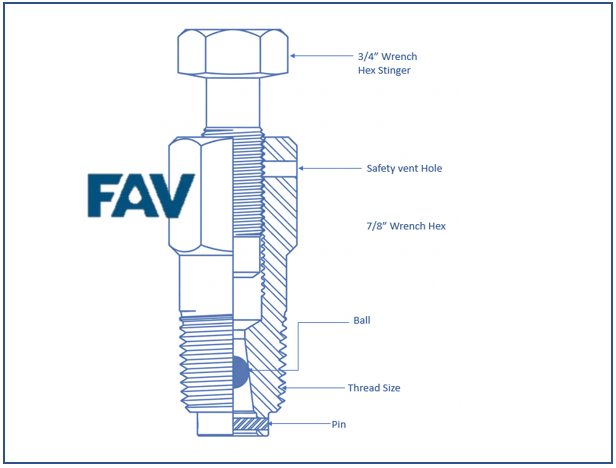

Packing Injection Fittings (Floating Ball – Taper Cavity), rated up to 10,000 Psi
Packing Injection Fittings (Floating Ball – Taper Cavity), rated up to 10,000 PSI, are designed for reliable sealant injection into valve packing systems. Our Packing Injection Fittings provide reliable sealing for industrial valves. The floating ball design supports effective sealant injection. Additionally, the taper cavity helps maintain sealing performance. These fittings offer durable construction for demanding applications. As a result, they are suitable for high-pressure valve maintenance and packing systems.
| Part No. | Thread Size |
| FAV/WH/PI/1 | 1/4” NPT |
| FAV/WH/PI/2 | 3/8” NPT |
| FAV/WH/PI/3 | 1/2“ NPT |
Materials of Construction:
- Body: Stainless Steel 316 (SS 316) / Alloy Steel 4140
- Ball: K-Monel
- Spring: Inconel® X-750
