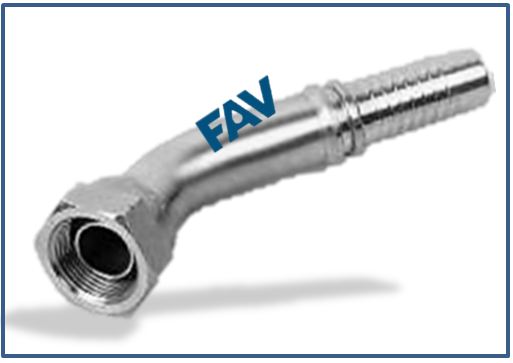

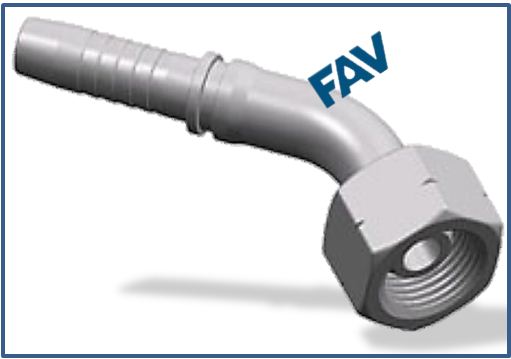

Hose Fitting (BSP Thread 60° Cone Fitting) - 45°ELBOW BSP FEMALE 60°CONE
| T | HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD T | DN | DASH | L | H | S1 |
| FHF-EHF-02-04T | G1/8＂X28 | 6 | 4 | 41.3 | 17.5 | 14 |
| FHF-EHF-04-04T | G1/4＂X19 | 6 | 4 | 42.4 | 18.6 | 19 |
| FHF-EHF-04-05T | G1/4＂X19 | 8 | 5 | 42.6 | 18.9 | 19 |
| FHF-EHF-04-06T | G1/4＂X19 | 10 | 6 | 47.1 | 21.2 | 19 |
| FHF-EHF-06-04T | G3/8＂X19 | 6 | 4 | 41.7 | 17.9 | 22 |
| FHF-EHF-06-05T | G3/8＂X19 | 8 | 5 | 41.9 | 18.2 | 22 |
| FHF-EHF-06-06T | G3/8＂X19 | 10 | 6 | 47.5 | 21.5 | 22 |
| FHF-EHF-06-08T | G3/8＂X19 | 13 | 8 | 55.5 | 24.3 | 22 |
| FHF-EHF-08-06T | G1/2＂X14 | 10 | 6 | 48.2 | 22.3 | 27 |
| FHF-EHF-08-08T | G1/2＂X14 | 13 | 8 | 57 | 25.7 | 27 |
| FHF-EHF-10-08T | G5/8＂X14 | 13 | 8 | 59 | 26.5 | 30 |
| FHF-EHF-10-10T | G5/8＂X14 | 16 | 10 | 67 | 27.7 | 30 |
| FHF-EHF-12-10T | G3/4＂X14 | 16 | 10 | 65.2 | 26 | 32 |
| FHF-EHF-12-12T | G3/4＂X14 | 13 | 12 | 73 | 30.5 | 32 |
| FHF-EHF-16-12T | G1＂X11 | 19 | 12 | 72.2 | 29.5 | 41 |
| FHF-EHF-16-16T | G1＂X11 | 25 | 16 | 83.3 | 33.8 | 41 |
| FHF-EHF-20-16T | G1.1/4＂X11 | 25 | 16 | 89 | 36 | 50 |
| FHF-EHF-20-20T | G1.1/4＂X11 | 32 | 20 | 101 | 40 | 50 |
| FHF-EHF-24-20T | G1.1/2＂X11 | 32 | 20 | 101.5 | 41 | 55 |
| FHF-EHF-24-24T | G1.1/2＂X11 | 38 | 24 | 118 | 48 | 55 |
| FHF-EHF-32-24T | G2＂X11 | 38 | 24 | 118.5 | 47.5 | 70 |
| FHF-EHF-32-32T | G2＂X11 | 51 | 32 | 136.2 | 56.2 | 70 |
