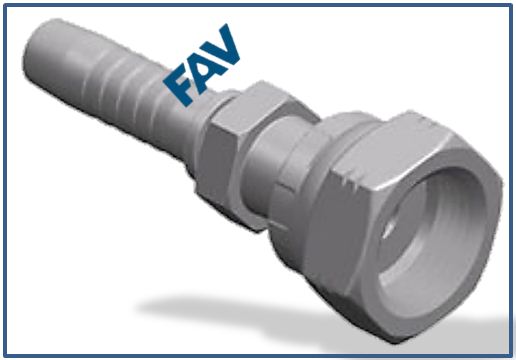

Hose Fitting (ORFS Female Flat Seat) - ORFS FEMALE FLAT SEAT DOUBLE HEXAGON

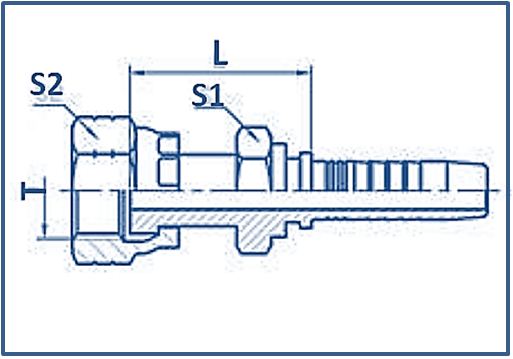

| T | HOSE BORE | DIMENSIONS | ||||
| PART NO. | THREAD T | DN | DASH | L | S1 | S2 |
| FHF-FDH-04-04 | 9/16＂X18 | 6 | 4 | 27.5 | 14 | 19 |
| FHF-FDH-06-04 | 11/16＂X16 | 6 | 4 | 30.5 | 19 | 22 |
| FHF-FDH-06-05 | 11/16＂X16 | 8 | 5 | 30.5 | 19 | 22 |
| FHF-FDH-06-06 | 11/16＂X16 | 10 | 6 | 30.5 | 19 | 22 |
| FHF-FDH-08-06 | 13/16＂X16 | 10 | 6 | 33 | 22 | 27 |
| FHF-FDH-08-08 | 13/16＂X16 | 13 | 8 | 33.5 | 22 | 27 |
| FHF-FDH-08-10 | 13/16＂X16 | 16 | 10 | 34.5 | 22 | 27 |
| FHF-FDH-10-08 | 1＂X14 | 13 | 8 | 40 | 27 | 30 |
| FHF-FDH-10-10 | 1＂X14 | 16 | 10 | 41 | 27 | 30 |
| FHF-FDH-12-08 | 1.3/16＂X12 | 13 | 8 | 42 | 36 | 36 |
| FHF-FDH-12-10 | 1.3/16＂X12 | 16 | 10 | 43 | 36 | 36 |
| FHF-FDH-12-12 | 1.3/16＂X12 | 19 | 12 | 45 | 36 | 36 |
| FHF-FDH-16-16 | 1.7/16＂X12 | 25 | 16 | 46 | 41 | 41 |
| FHF-FDH-20-16 | 1.11/16＂X12 | 25 | 16 | 49 | 50 | 50 |
| FHF-FDH-20-20 | 1.11/16＂X12 | 32 | 20 | 50 | 50 | 50 |
